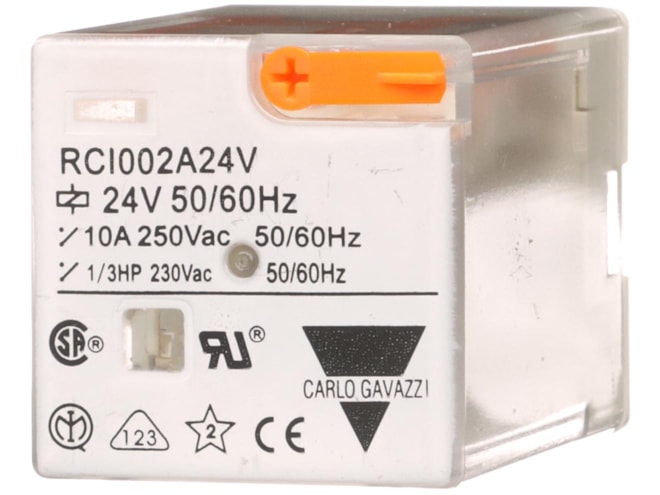

Carlo Gavazzi Type RCI Relay

Industrial relay with 2 or 3 change over contacts and up to 240VAC/110VDC coil voltage.

Starting at $11.30

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 28 weeks
Product Specs

Features

  • 8 or 11 pin socket mounting
  • 2 or 3 change over contacts
  • 10A max switching current
  • 250 VAC/VDC max switching voltage
  • AC coils: 12 to 240VAC
  • DC coils: 12 to 110VDC
  • 100,000 cycle electrical life
  • 10,000,000 cycle mechanical life
  • DIN sockets with two terminal layout options
  • UL, CSA, CE, and ROHS approvals

The Carlo Gavazzi Type RCI Relay can be used in a wide range of applications such as control panels, HVAC systems, pumps and compressors, and electronic and consumer products. The RRM is typically used to switch loads such as heaters, lights, and motors. It is available in 2 or 3 change over contact and 8 or 11 pin socket mounting configurations.

Carlo Gavazzi RCI Relay Accessories
Carlo Gavazzi RCI Relay Accessories

DIN sockets and holding springs for Carlo Gavazzi RCI series relays.

Starting at $7.50
