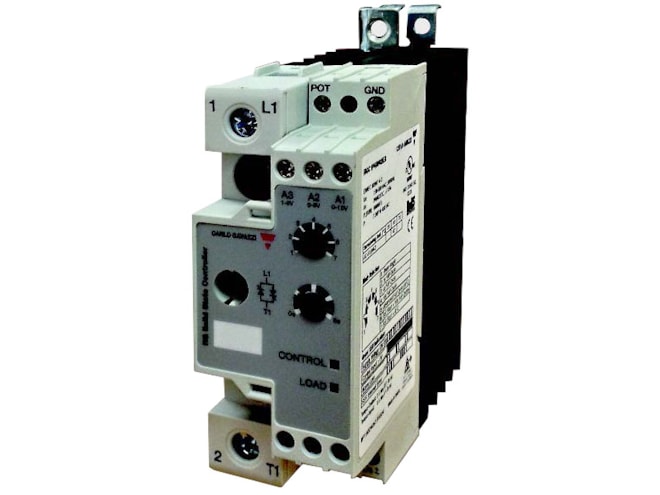

Carlo Gavazzi RGC1P Solid State Relay

1-pole analog switching AC solid state contactors, rated operational voltage up to 550 VAC.

Features

  • Up to 550VAC rated operational voltage
  • Up to 43AAC rated operational current
  • 4-20mA, 0-5V, 1-5V, 0-10V external potentiometer control inputs
  • IP20 protection
  • Integrated varistor protection on output
  • Load ON LED indication
  • RoHS compliant
  • 100kA short circuit current rating
  • DIN or panel mount

The Carlo Gavazzi RGC1P solid state relay is a series of solid state contactors with integrated heatsink that allows control of output power of 1-phase loads with an analog control input. The RGC1P offers a wide range of current and voltage ranges. Local setting by an external potentiometer is also possible. Switching modes, selectable through a front knob, allows phase angle control, full cycle control, advanced full cycle control specific for short wave infrared heaters and soft starting for limiting inrush current of loads with a high temperature coefficient. The output of the RGC1P is protected against overvoltages by means of an integrated varistor across the output. Two front LEDs indicate the status of the load and control.

Carlo Gavazzi Thermal Interface
Carlo Gavazzi Thermal Interface

Pre-cut thermal pad or silicone based thermal paste for use with solid state relays.

Starting at $1.80
Part Number Price Available
RGC1P23V30EA
Show Configuration
$320.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 30 weeks". Click here to select options
