Overview

Features

  • Thread and flange process connection
  • -76 to 540°F (-60 to 280°C) temperature
  • -1 to +100bar (-14.5 to +1,450psi) pressure
  • 316L, Alloy (PFA and Enamel on request) sensor material
  • International explosion protection certificates
  • Overfill prevention WHG, SIL, marine approvals
  • ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI

Description

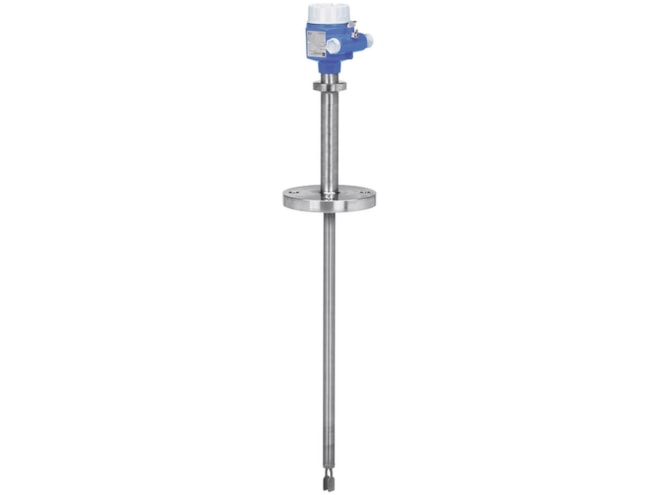

E+H Liquiphant FTL71 is a point level switch with extension tube for use in hazardous areas with all international certificates. FTL71 is especially designed for applications with high process temperatures up to 280°C and can be used up to SIL2, in homogeneous redundancy up to SIL3. An integrated second line of defense offers the highest degree of safety. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
