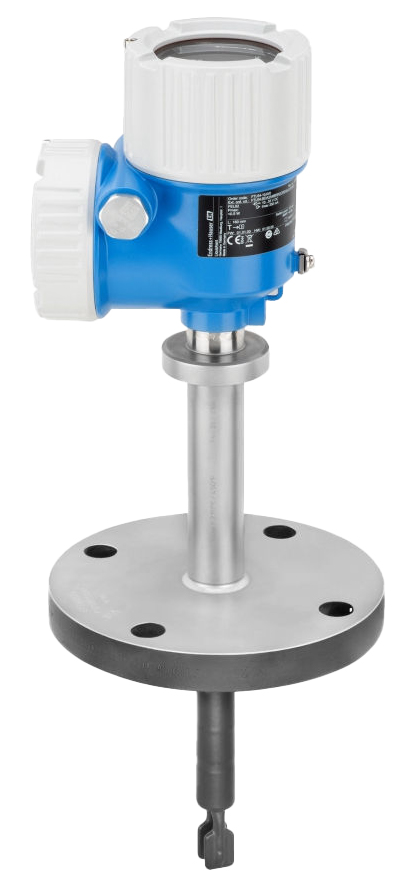

E+H Liquiphant FTL64 Level Switch

Point level switch for liquids in high-temperature applications.

Starting at $3,224.75

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • -76 to 536°F process temperature
  • -1 to 100 bar (-1 to 1,450 PSI) process pressure
  • 0.5g/cm3 min. density of medium (0.4g/cm3 optional)
  • Up to 6m (19.7ft) sensor length
  • Heartbeat Technology
  • Bluetooth® Operation and maintenance SmartBlue App
  • LED module
  • RFID TAG for easy identificatino
  • Temperature spacer for high process temperature
  • Plug and play functionalities

The E+H Liquiphant FTL64 Level Switch is designed for use with all liquids, especially hot and pumpable liquids, and for minimum or maximum detection in tanks, vessels, and piping, even in hazardous areas. The FTL64 is particularly suitable for high-temperature applications running up to 536°F. A tuning fork and process connection with highly corrosion-resistant Alloy C22 (2.4602) material and PFA-coated (conductive) version are available for especially aggressive media.

The vibronic device is determined for a safe and active measuring technology in applications with high temperatures and that require a reliable and proven point level detection for tank overfill protection and pump dry run protection. The FTL64 includes a digital connection and gives a real-time data at hand.

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Approval Output Display and Operation Type of Probe Sensor Length and Material Process Connection Accessory Mounted Price Available
FTL64-AAA4ABIEA2DJA1VBJLA [36in]
Show Full Configuration
Non-hazardous area
FEL64, relay DPDT 19 to 253 VAC/19 to 55 VDC contact 253V/6A + test button
Without display; with switch
Tube extension
Custom length in inches L, Ra<3.2μm/126μi; 316L
0.75in, 316L
Without
 $2,184.17 6 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
FTL64-CDA4ABIEA2DJA1VBJLA 8.00inch Call for information 1 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
