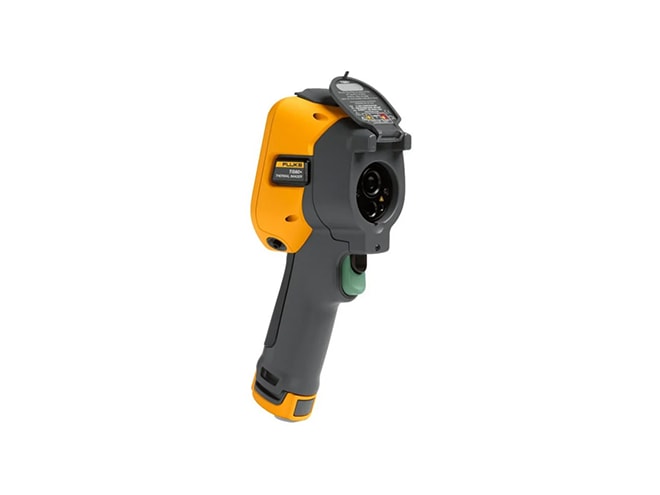

Fluke TiS60+ Thermal Imager

76,800 (320 x 240) pixel resolution, -4 to 752°F, sensitivity ≤ 0.045°C, 30Hz frame rate, Fluke Connect compatible.

Fluke TiS60+ Thermal Imager

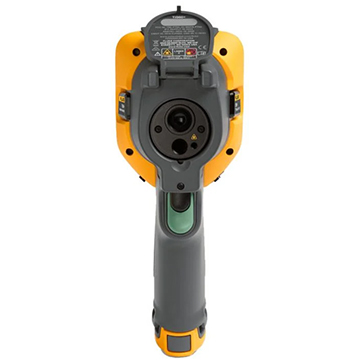

Fluke TiS60+ Thermal Imager Front

$5,069.28 Found a better price? Let us match.

View Company Reviews

Part Number

FLK-TIS60+ 30HZ

Manufactured

By Fluke

Includes

FREE UPS 2nd Day Air Shipping
FREE Lifetime Tech Support
FREE Accessories Included

Availability

Usually ships in 8-14 weeks

Product Manual Product Specs

Features

Range: -20 to 400°C (–4 to 752°F)
1.86 mRad spatial resolution
76,800 (320 x 240) pixel resolution
30Hz frame rate
34.1° x 25.6° field of view
532:1 distance-to-spot ratio
±2°C or 2% (at 25°C nominal, whichever is greater)
Fixed focus, minimum focus distance 46cm (18in)
IR-Fusion technology with five AutoBlend modes
Four picture-in-picture modes
Thermal sensitivity: ≤0.045°C at 30°C target temp (45mK)
7.5 to 14μm spectral band
Rugged 3.5 inch (landscape) 320 x 240 LCD display
Built-in visible light digital camera (5MP)
Engineered to withstand 2 meter (6.5 feet) drop
IP54 enclosure rating
Voice annotation
Internal 4GB memory and 4GB micro SD card
Create and email reports onsite with Fluke Connect

What's in the Box

TiS60+ infrared camera
AC power supply (including universal ac adapters)
Two-bay smart battery charger
2 rugged lithium ion smart batteries
USB cable
4 GB micro SD card
Rugged, hard carrying case
Soft transport bag
Adjustable hand strap

With the Fluke TiS60+ you can boost you or your team's performance with 320 x 240 resolution. Infrared images taken with the TiS60+ capture smaller temperature differences from farther away. If you are new to thermal imaging or if your camera is being used by a team with varying levels of thermal imaging experience, the TiS60+ offers fixed focus with the ability to capture quality images from farther.

Often the next big challenge with infrared images is to make sure that the images taken by the team can quickly be added to work orders. The TiS60+ features IR Photo Notes making this easy. They give the camera operator a simple way to add pictures associated with the image documenting the equipment name or the room location associated with the thermal image so that the person creating the work order can send the technicians to the right location for repairs.
