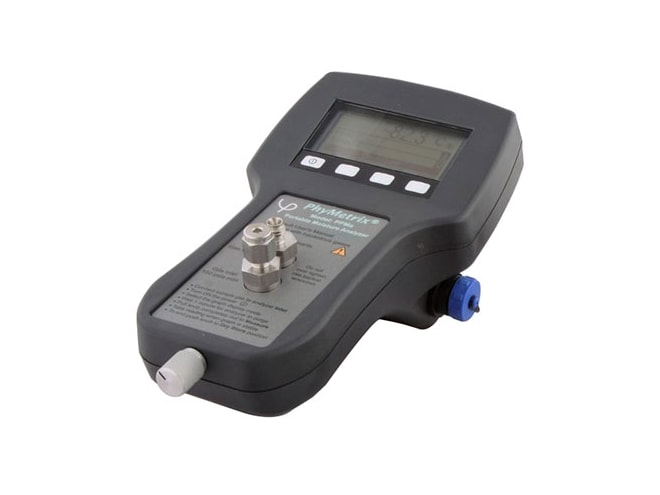

PhyMetrix PPMa Portable Moisture Analyzer

Fast, accurate and repeatable handheld dew point meter, with Nanosensor technology.

Phymetrix PPMa Portable Moisture Analyzer
Phymetrix PPMa Portable Moisture Analyzer Access

Starting at $5,500.00

View Company Reviews

Manufactured

By PhyMetrix
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

-166 to 68°F dewpoint (-110 to 20°C)
±2°C accuracy
>1 LPM sample flow
0.8°C repeatability
-40 to 158°F (-40 to 70°C) temp range
2 to 150 PSIA ±1%, 316L ss wetted parts, higher pressures optional
Programmable data logging
Built-in temperature compensation
Integral sensor desiccant storage chamber
Battery backed clock calendar
Optional 4/20 mA output
1/8″ Swagelok® compression fittings
NIST calibrations
NEMA 4X
IP65 enclosure, optionally ATEX approved

What's in the Box

USB cable (mini B male to A male)
AC universal power adapter with USB connector
Two (2) 1/8" tube to SAE/MS 5/16-24 Swagelok® adapters
(flow control orifice built into one of the SAE adapters)
Exhaust pigtail - Hanging hook and magnet
1/8″ Teflon Tube, 6′ long, up to 250 psi
User’s Manual
NIST Certificate

The PhyMetrix PPMa Portable Moisture Analyzer is a multifunctional, multi-purpose, and menu-driven handheld dew point meter & hygrometer. The advanced and user-friendly interface lets you observe continuous status and diagnostic displays with an on-screen histogram and trend graph. The PPMa's integrated orifice provides pressure regulation and the USB data interface also charges the battery. There is also an optional pressure sensor with automatic dew point correction.

Cost effective NIST traceable moisture instrument certification.

Starting at $475.00

Accessories

Please consider these optional accessories.

PhyMetrix Needle Valve for PPMa

$500.00

PhyMetrix Pressure Regulator for PPMa

3500 PSI maximum inlet pressure.

$1,500.00

PhyMetrix Mini-Demister for PPMa

Gas-liquid separator ideal for SF6 or NG moisture measurement.

$800.00

PhyMetrix Carrying Case for PPMa

$225.00

PhyMetrix Mini Heat Exchanger

Dissipates ~ 90% of temperature gradient between sample and ambient.

$760.00

Part Number	Price	Available
PPMa Show Configuration	$5,500.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
