Starting at $4,500.00

Phymetrix

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open 8:00am to 5:30pm ET

Features

  • -166 to 68°F dewpoint (-110 to 20°C)
  • ±2°C accuracy
  • >1 LPM sample flow
  • 0.8°C repeatability
  • -40 to 158°F (-40 to 70°C) temp range
  • 2 to 150 PSIA ±1%, 316L ss wetted parts, higher pressures optional
  • Programmable data logging
  • Built-in temperature compensation
  • Integral sensor desiccant storage chamber
  • Battery backed clock calendar
  • Optional 4/20 mA output
  • 1/8″ Swagelok® compression fittings
  • NIST calibrations
  • NEMA 4X
  • IP65 enclosure, optionally ATEX approved

What's in the Box

  • USB cable (mini B male to A male)
  • AC universal power adapter with USB connector
  • Two (2) 1/8" tube to SAE/MS 5/16-24 Swagelok® adapters
  • (flow control orifice built into one of the SAE adapters)
  • Exhaust pigtail - Hanging hook and magnet
  • 1/8″ Teflon Tube, 6′ long, up to 250 psi
  • User’s Manual
  • NIST Certificate

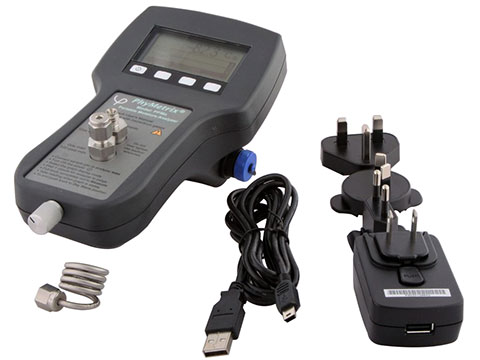

The Phymetrix PPMa Portable Moisture Analyzer is a multifunctional, multi-purpose, and menu-driven handheld dew point meter & hygrometer. The advanced and user-friendly interface lets you observe continuous status and diagnostic displays with an on-screen histogram and trend graph. The PPMa's integrated orifice provides pressure regulation and the USB data interface also charges the battery. There is also an optional pressure sensor with automatic dew point correction.

Service Options

Phymetrix NIST Re-calibration Services
Cost effective NIST traceable moisture instrument certification
$475.00

Accessories

Please consider these optional accessories.

Phymetrix Mini-Demister for PPMa
Gas-liquid separator
$500.00
Phymetrix Mini Heat Exchanger
Dissipates ~ 90% of temperature gradient between sample and ambient
$450.00
