Isotech Jupiter 4852 Dry Block Calibrator

High-temperature, 95 to 1220°F (35 to 660°C), ideal for thermocouple & platinum resistance thermometer calibration. Learn more...

Starting at $6,204.93

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • 35mm diameter by 148mm deep calibration volume
  • 20min heating time from 30 to 650°C
    • 60min cooling time
  • ±0.02°C @100°C, ±0.03°C @650°C stability (Basic & Site)
    • ±0.015°C @100°C, ±0.025°C @650°C (Advanced)
  • 0.5°C display accuracy in dry block mode
  • ±0.3°C blackbody source
  • Standard insert can hold up to six thermometers
    • 2 x 4.5mm, 2 x 6.4mm, 1 x 8.0mm, 1 x 9.5mm
  • Calibrates entire loop by using a heat source
  • Ideal for field use
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

  • Standard insert
  • 3-point traceable certificate

The Isotech Jupiter 4852 dry block calibrator ideal for the calibration of thermocouples and platinum resistance thermometers. It has been designed for fast heating and cooling for convenient field use. For flexibility surface sensor and infrared thermometer accessories can be added. The standard insert can hold up to six thermometers.

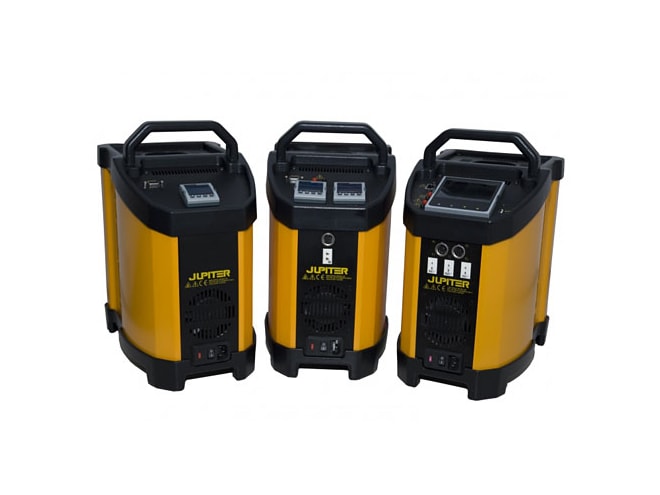

The Jupiter comes in three models, Basic, Site, and Advanced. The Basic has a digital display of set and nominal temperature, the Site additionally includes a built-in independent temperature indicator for a reference probe. The Advanced controller has inputs for reference and test thermometers with a further range of sophisticated features including automatic temperature cycling, secure data logging and full color high resolution display.

Probes

Isotech Semi-Standard Platinum Resistance Thermometer
Isotech Semi-Standard Platinum Resistance Thermometer

375 mm PRT with termination connector for temperatures from -50°C to 670°C.

$1,542.94

Calibration

Isotech Surface Sensor Calibration Kit
Isotech Surface Sensor Calibration Kit

Includes an insert and angled thermocouple.

$737.23

Software

Isotech I-Cal Easy Calibration Software
Isotech I-Cal Easy Calibration Software

Powerful software automates the calibration process and provides certificates.

$4,946.61

Cases

Isotech 931-22-111 Carrying Case
Isotech 931-22-111 Carrying Case

Sturdy carrying case for ISOCAL Europa, Venus, Calisto, Jupiter, & Pegasus .

$1,198.40

Accessories

Please consider these optional accessories.

Isotech Blank Insert
Isotech Blank Insert

Blank metal insert for Jupiter 650.

$697.64
Isotech Blackbody Target Kit
Isotech Blackbody Target Kit

Blackbody target kit for Jupiter 650.

$662.33
