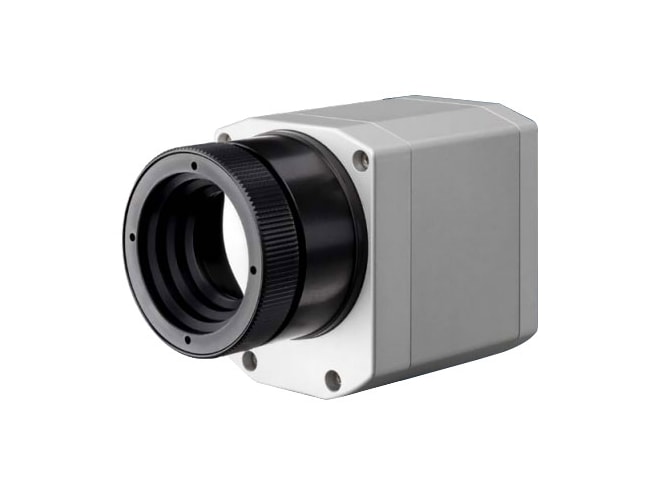

Optris PI 450 G7 Infrared Camera

110,016 (382 x 288) pixel resolution, 392 to 2732°F, 130mk sensitivity & 7.9µm spectral range for the glass industry. Learn more...

Overview

Features

  • ±3.6°F or ±2% accuracy
  • 382 x 288px optical resolution
  • Available lenses
    • 13° x 10° FOV, f = 1.6in
    • 29° x 22° FOV, f = 0.7in
    • 53° x 40° FOV, f = 0.4in
    • 80° x 56° FOV, f = 0.3in
  • 7.9µm spectral range
  • Up to 80Hz frame rate
  • 392 to 2732°F temperature range
  • 130mK thermal sensitivity
  • Linescan function
  • USB power supply
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

  • 1 lens
  • 3.3ft USB cable
  • Standard PIF with 3.3ft cable & terminal block
  • Table tripod
  • Optris PI Connect Software
  • Rugged outdoor case

Description

The Optris PI 450 G7 infrared camera provides exact temperature measurements on glass surfaces providing thermal images in real time. It has 7.9µm spectral range with a frame rate that can switch between 27 and 80Hz. The PI 450 G7 functions at ambient temperatures of up to 158°F without the need for additional cooling. It's small size is suitable for use in confined spaces.

The Optris PI Connect software offers linescan mode to enable temperature measurement of panes of glass during transport on conveyor belts to thoroughly document production. It measures the temperature distribution between the heating and cooling zone, automatically regulating the heating or cooling elements when necessary.

The complimentary PI Connect software provides extensive analysis of measurement data both on and off line, and can be customized to suit the demands of even the most unique applications. Features include automatic process and quality control, video recording, snap shot, and remote control of the camera. The PI connect software is necessary to interpret measurement results and is compatible with all netbooks, notebooks, and computer systems using Windows 7, 8, and 10.

Documents

Accessories

Optris ACPICERT Calibration Certificate
Optris ACPICERT Calibration Certificate

Option for high temperatures up to 2192°F.

Starting at $225.00
Optris Advanced Cooling Jacket
Optris Advanced Cooling Jacket

Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support.

Mfg. has some models in stock
Starting at $1,400.00
Optris Focusing Unit & Front End
Optris Focusing Unit & Front End

Required component for Optris advanced cooling jacket.

Mfg. has some models in stock
Starting at $195.00
Optris Cooling Jacket Protective Grid
Optris Cooling Jacket Protective Grid

Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens.

Mfg. has some models in stock
Starting at $136.00
Optris Cooling Jacket Mounting Bracket
Optris Cooling Jacket Mounting Bracket

Available as adjustable in either one or two axes .

Starting at $185.00
Optris ACPIPH Protective Housing
Optris ACPIPH Protective Housing

Stainless steel protective housing with mounting base.

Mfg. has stock
$150.00
Optris ACPIMB Mounting Base
Optris ACPIMB Mounting Base

Stainless steel mounting base adjustable in 2 axes .

Mfg. has stock
$70.00
Optris Outdoor Protective Housing
Optris Outdoor Protective Housing

24VDC housing for camera, USB server & industrial process interface with integrated heater, protection window & air purge collar.

Mfg. has some models in stock
Starting at $1,285.00
Optris ACOPHWM Wall Mount
Optris ACOPHWM Wall Mount

For Optris outdoor protective housing .

Mfg. has stock
$80.00
Optris ACCJAPIPIFMA Industrial Process Interface
Optris ACCJAPIPIFMA Industrial Process Interface

For integration into outdoor protective housing, 500 VACRMS isolation voltage between PI camera & process, 25cm connection cable.

$250.00
Optris Industrial Process Interface with Connection Box
Optris Industrial Process Interface with Connection Box

Available with 5, 10, or 20m of cable, cable glands or right angle connector & temperatures up to 482°F.

Mfg. has some models in stock
Starting at $335.00
Optris ACPIUSBSGB USB-Server Gigabit
Optris ACPIUSBSGB USB-Server Gigabit

USB-Ethernet converter for PI series infrared cameras, includes 24VDC power supply.

Mfg. has stock
$580.00
Optris ACPIPOE PoE Injector
Optris ACPIPOE PoE Injector

For PI NetBox or USB-Server.

Mfg. has stock
$126.00
Optris ACPINBPH Protective Housing
Optris ACPINBPH Protective Housing

For PI NetBox, IP 65 rated.

$325.00
Optris PI NetBox
Optris PI NetBox

Mini PC with hardware & software integrates with the PI Infrared Camera series for a stand-alone system or USB to Ethernet adapter.

$1,870.00
Optris PI Series Lens
Optris PI Series Lens

Interchangeable lenses for PI series thermal imagers in various field of view options.

Starting at $1,780.00

In Stock

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number Price Available
OPTPI450G7O80T1500
Show Configuration
Call for pricing 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
