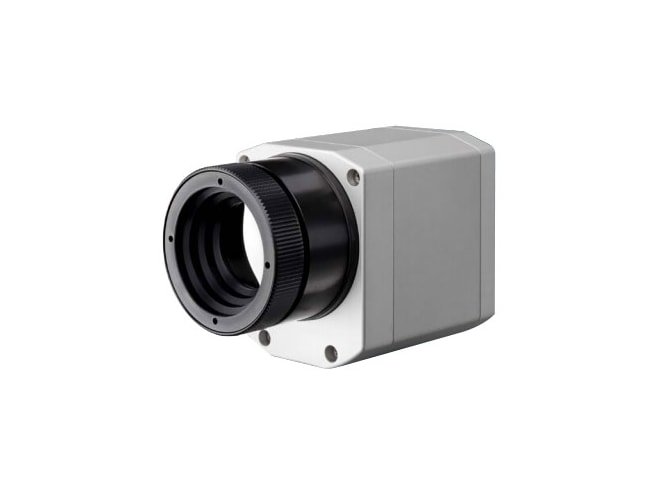

Optris PI 450i Infrared Camera

110,016 (382 x 288) pixel resolution, up to 2732°F, 0.04K sensitivity, 80Hz frame rate.

Starting at $6,300.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-5 weeks
Product Family
Product Manual Product Specs

Features

  • Available lenses
    • 18° x 14° FOV, f = 0.7in
    • 29° x 22° FOV, f = 0.5in
    • 53° x 38° FOV, f = 0.3in
    • 80° x 54° FOV, f = 0.2in
  • ±3.6°F or ±2% accuracy
  • 8 to 14µm spectral range
  • 382 x 288px optical resolution
  • Switch between 80 or 27Hz measurement speed
  • Temperature ranges up to 2732°F
  • 40mK temperature resolution
Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

The Optris PI 450i infrared camera is designed to detect the slightest temperature differences with a thermal sensitivity of 40mK, providing real time thermographic images in high speed. Its high sensitivity makes the PI 450i well suited for quality control or medical prevention applications.

The Optris PI 450i infrared camera comes with thermography software PIX connect, allowing real-time temperature analyzation and remote control of the camera. Also, individual alarm levels with defined visual or acustic alarm signals can be set.

Optris ACPICERT Calibration Certificate
Optris ACPICERT Calibration Certificate

Option for high temperatures up to 2192°F.

Starting at $200.00
Optris Advanced Cooling Jacket
Optris Advanced Cooling Jacket

Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support.

Starting at $1,400.00
Optris Focusing Unit & Front End
Optris Focusing Unit & Front End

Required component for Optris advanced cooling jacket.

Starting at $195.00
Optris ACPIMB Mounting Base
Optris ACPIMB Mounting Base

Stainless steel mounting base adjustable in 2 axes .

$70.00
Optris ACPIPH Protective Housing
Optris ACPIPH Protective Housing

Stainless steel protective housing with mounting base.

$150.00
Optris Outdoor Protective Housing
Optris Outdoor Protective Housing

24VDC housing for camera, USB server & industrial process interface with integrated heater, protection window & air purge collar.

Starting at $1,285.00
Optris ACOPHWM Wall Mount
Optris ACOPHWM Wall Mount

For Optris outdoor protective housing .

$80.00
Optris ACCJAPIPIFMA Industrial Process Interface
Optris ACCJAPIPIFMA Industrial Process Interface

For integration into outdoor protective housing, 500 VACRMS isolation voltage between PI camera & process, 25cm connection cable.

$250.00
Optris Industrial Process Interface with Connection Box
Optris Industrial Process Interface with Connection Box

Available with 5, 10, or 20m of cable, cable glands or right angle connector & temperatures up to 482°F.

Starting at $335.00
Optris ACPIUSBSGB USB-Server Gigabit
Optris ACPIUSBSGB USB-Server Gigabit

USB-Ethernet converter for PI series infrared cameras, includes 24VDC power supply.

$580.00
Optris ACPINBPH Protective Housing
Optris ACPINBPH Protective Housing

For PI NetBox, IP 65 rated.

$325.00
Optris ACPIPOE PoE Injector
Optris ACPIPOE PoE Injector

For PI NetBox or USB-Server.

$126.00
Optris Cooling Jacket Protective Grid
Optris Cooling Jacket Protective Grid

Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens.

Starting at $136.00
Optris Cooling Jacket Mounting Bracket
Optris Cooling Jacket Mounting Bracket

Available as adjustable in either one or two axes .

Starting at $185.00
Optris PI NetBox
Optris PI NetBox

Mini PC with hardware & software integrates with the PI Infrared Camera series for a stand-alone system or USB to Ethernet adapter.

$1,870.00
Optris PI Series Lens
Optris PI Series Lens

Interchangeable lenses for PI series thermal imagers in various field of view options.

Starting at $1,780.00
Optris Microscope Lens Accessory Kit
Optris Microscope Lens Accessory Kit

Microscope lens with 10° x 8°(PI450) or 12° x 9°(PI640) FOV, stand, and PIX Connect software USB flash drive.

$2,730.00
Optris ACCJAPWPI2XXLW Protective Window
Optris ACCJAPWPI2XXLW Protective Window

Protective window (67 x 3mm/ ZnS) for PI2xx (VIS + IR transmittive) and for PI LT, PI G7 if used together with air purge laminar .

$1,280.00
Optris ACPIIAC IR App Connector
Optris ACPIIAC IR App Connector

USB 45cm cable and adapters for USB-C or Mini-USB for PI series and Xi 400 cameras.

Starting at $52.00
Optris CoolingJacket Mounting Flange
Optris CoolingJacket Mounting Flange

Fitting for connection to pipe flange, CoolingJacket and CoolingJacket Advanced.

Starting at $130.00
Optris Rugged Outdoor Case
Optris Rugged Outdoor Case

Rugged outdoor case for PI450i and PI640i model cameras with IP67 rating.

$155.00
Optris M48 Pipe Flange
Optris M48 Pipe Flange

Fitting to sighting tubes with M48x1.5 thread; for high ambient temperatures.

Starting at $105.00
