CAL Controls CALGrafix Software

Process monitoring & configuration software for use with CAL 3300, 9300, 9400 & 9500P temperature controllers

CAL Controls CALGrafix Software

Price

$319.00

Instrumart Reviews by Trustpilot

Includes

Part number 1003GB000

Manufactured by CAL Controls

Availability

Not in stock. Usually ships in 7-10 business days [?]

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Noah P.
Applications Engineer
5 years at Instrumart
Luke M.
Applications Engineer
Jack N.
Applications Engineer
4 years at Instrumart
Dwight M.
Senior Applications Engineer
23 years at Instrumart
Ron J.
Temperature Engineering Lead
23 years at Instrumart
Shawn D.
Senior Applications Engineer
14 years at Instrumart
Alex A.
Senior Applications Engineer
13 years at Instrumart

Features

  • Data logging capabilities
  • Process data archiving

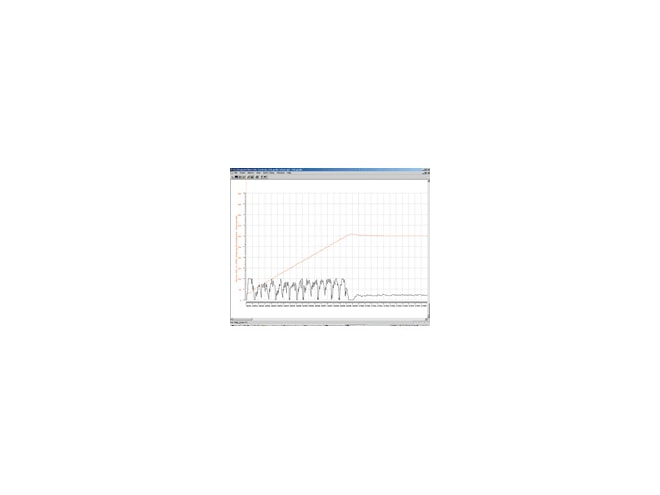

  • Chart recorder
  • Virtual instrument display
  • On screen alarm and display

This product is an accessory for the following products:

CAL Controls 3300 Series Temperature Controller
CAL Controls 3300 Series Temperature Controller
1/32 DIN, autotuning / PID, programmable for TC, 2-wire RTD, and mV
Starting at
$271.00
In Stock
CAL Controls 9300 Series Temperature Controller
CAL Controls 9300 Series Temperature Controller
1/16 DIN, single display, autotuning / PID, programmable for TC, 2-wire RTD, and mV
Starting at
$291.00
In Stock
CAL Controls 9400 Series Temperature Controller
CAL Controls 9400 Series Temperature Controller
1/16 DIN, dual display, autotuning / PID, programmable for TC, 2-wire RTD, and mV
Starting at
$319.00
In Stock
CAL Controls 9500P Series Temperature Controller
CAL Controls 9500P Series Temperature Controller
1/16 DIN programmable process and temperature controller with communications and software support
Starting at
$362.00
In Stock

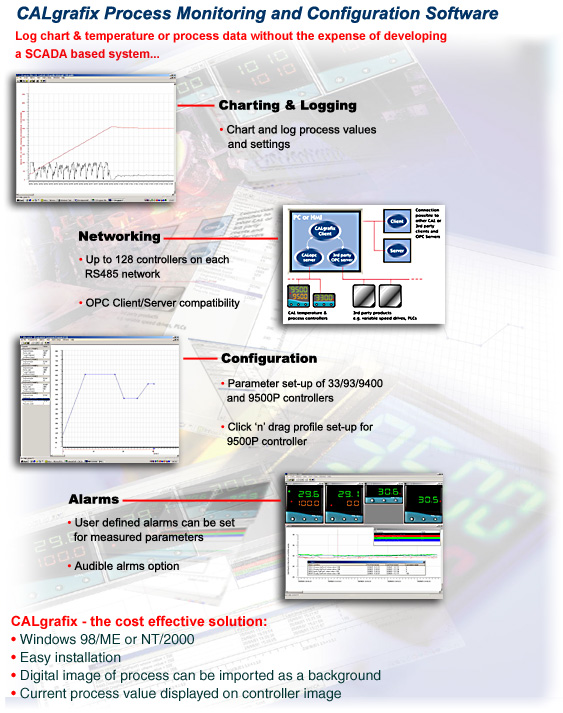

The CAL Controls CALGrafix software integrates a selection of functions within a single user interface. Its ability to configure controllers reduces installation time and provides greater control when cloning instrument settings. Up to 128 controllers can be set up, and profiles can be created with up to 126 segments or 31 programs. This software does not require programming skills to operate.

When used with the CAL Controls 9500P series temperature controller the software provides the ability to program stop, start, and hold functions. A click and drag graphical profile is available for the 9500P as well.

Typical applications for CALGrafix software include:

  • Environmental and test chambers
  • Plastic injection and extrusion machines
  • Ovens, autoclaves, furnaces, and kilns
  • Scientific research and testing
  • Food processing equipment
  • Metal and glass annealing
  • Material curing applications
