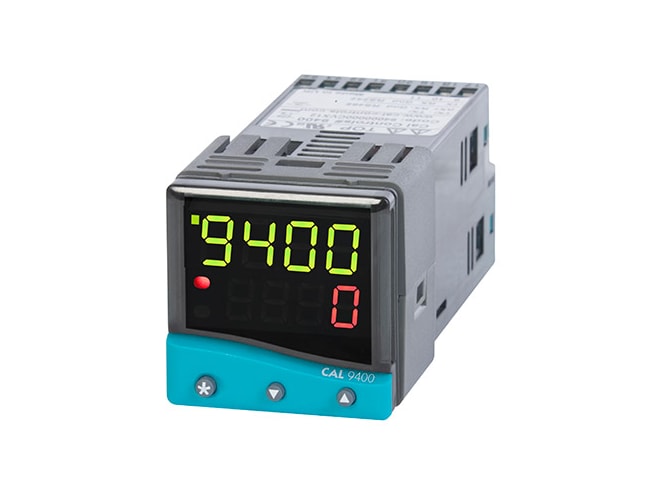

CAL Controls 9400 Series Temperature Controller
1/16 DIN, dual display, autotuning / PID, programmable for TC, 2-wire RTD, and mV
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Full PID autotuning temperature controllers
- Bright LED displays
- Alarms with 5 options
- PID heat-cool operation
- Ramp to set point
- Sleeve mounting for easy maintenance
- IP66 protection from front panel
- 3-year warranty
- Charting and logging software
The 1/16 DIN CAL Controls 9400 Series temperature controller is a dual display, dual output, miniature controller with PID control strategy. The CAL Controls 9400 Series temperature controller provides the user with the benefits of an easy to use ‘autotune' program (so that you don't need to understand PID to set-up a controller).
Temperature control can be optimized with a single shot autotune either on initial warm-up or at setpoint. The CAL Controls 9400 Series temperature controller features a second setpoint that can be configured in a variety of alarm modes or PID Heat-Cool strategy. A programmer offers a single ramp to setpoint with a choice of timed soak period before switching off the output.
The CAL Controls 9400 Series temperature controller provides control of non-temperature processes by the provision of linear input ranges and scaling in commonly used engineering units. Each CAL Controls 9400 Series temperature controller has the option to add a communications board so that you can connect them to a PC. The best way to use the CAL Controls 9400 Series temperature controller with a PC is with CAL Control's data-logging and chart-recorder software CALgrafix.
- CAL Controls 9400 Series Temperature Controller Concise Manual (686 KB)
- CAL Controls 9400 Series Temperature Controller Manual PDF (309 KB)
- CAL Controls Controller Modbus Protocol Manual PDF (97 KB)
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks. Call for expedite options". Click here to select options
