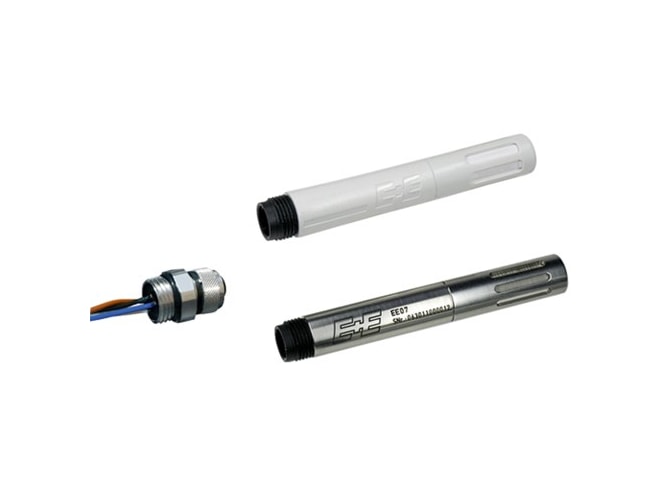

E+E EE07 Sensor Probes

Interchangeable Humidity / Temperature Probes for OEM Applications.

Starting at $331.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Interchangeable probes
  • Digital output
  • RH range:0 to 100%
  • RH accuracy:
    • ±2% RH (0 to 90% RH)
    • ±3% RH (90 to 100% RH)
  • Probes available include:
    • RH/T probe for standard applications
    • RH/T probe for clean room applications
    • RH/T module for installation in small spaces
    • Temp probe for standard applications
    • Temp probe for clean room applications
  • Compact size

The E+E EE07 Sensor Probes is based on a new electronic concept in combination with the miniaturized SMD humidity sensor element HC105 series. A wide humidity and/or temperature working range, compact dimensions of the polycarbonate or metal housing and appropriate filters allow for the use in a large variety of applications.

Calibration data and other measurement relevant functions (e.g. linearization or temperature compensation) are stored in the electronics, integrated in the probe. The digital output signal allows for easy processing of the measurement results and cost efficient interfacing to customers electronics. The configuration equipment allows humidity and temperature adjustment of the sensor.

Typical applications for the EE07 Probes include:

  • Humidifiers and dehumidifiers
  • Meteorological applications
  • Climate and ventilation control
  • Snowguns
  • OEM applications
