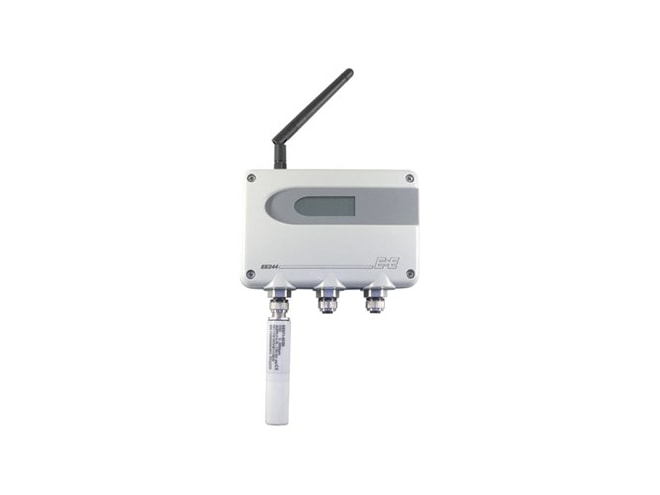

E+E EE244 Wireless Temperature / RH / CO2 Transmitter
Modular wireless transmitter for temperature, humidity and CO2, up to 500 transmitters, interchangeable probes
Need Help? Call a Calibration Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Up to 500 transmitters in 1 wireless network
- Interchangeable probes
- Remote sensors at up to 10
- Battery life of up to 3 years
- 2.4 GHz transmission frequency
- IEEE 802.15.4 transmission system
- 10mW transmission power
- 1000m radio range (in open field)
The E+E EE244 Wireless Temperature / RH / CO2 Transmitter is based on the IEEE 802.15.4 protocol with a transmission frequency of 2.4 GHz. The EE244 measures up to three physical quantities: relative humidity, temperature and CO2. The EE244 accommodates up to 3 sensing probes, which can be plugged directly into the EE244 basic unit or with a connection cable up to 10m long. The robust enclosure features an external antenna and an optional display.
The EE244 wireless transmitter is powered by four alkaline AA batteries, but can also be connected to an external power supply. Depending on the number of probes, the physical quantities measured, and the sampling and transmission rate, the batteries may last up to 3 years.
Applications for the EE244 include:
- Pharmaceutical industry
- Control rooms
- Cooling chambers
- HVAC systems
- Food industry
