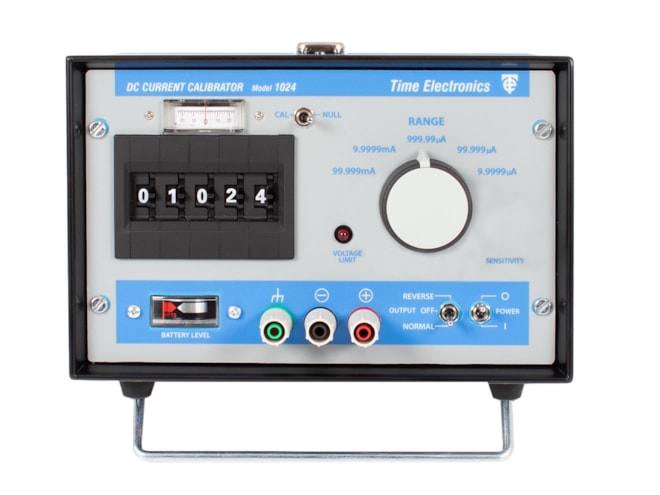

Time Electronics 1024 DC Current Calibrator
Precision DC current source for calibration and test applications from nanoamp levels to 100mA
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- 0 to 100mA output in 5 ranges
- 0 to 99.999mA in 1μA steps
- 0 to 9.9999mA in 100nA steps
- 0 to 999.99μA in 10nA steps
- 0 to 99.999μA in 1nA steps
- 0 to 9.9999μA in 0.1nA steps
- Accuracy: ±0.02% of setting + ±0.005% of range + ±0.2nA
- 10ppm/hr stability
- Up to 15V output drive
- A front panel LED indicator provides warning of insufficient drive voltage
- Null measuring facility
- Safety terminals
- Battery or mains operation
The Time Electronics 1024 DC current calibrator is a precision DC current source for calibration and test applications from nanoamp levels to 100mA. The 1024 is easily portable and convenient for laboratory, field, or industrial use for applications including: calibration and testing of current sensitive transducers; calibration and linearity tests on digital and electronic current meters; and semiconductor parameter measurements, for example diode conduction voltages at specified current levels.
The null balance system enables the 1024 to be used for making accurate current measurement in addition to its basic function as a calibrator. Operation is by backing the current source output against the current to be measured, with the difference being displayed on a sensitive center zone null meter. At the null point, there is no voltage drop across the 1024.
The Time Electronics 1024 employs a precision aged reference diode as a basic reference source. Excellent zero stability is ensured by the use of a high performance FET chopper amplifier system. Precision metal film resistors with temperature coefficients of less than 10ppm per °C are used to maintain the accuracy and stability of the initial calibration.
The 1024 can be powered from mains supply or by the internal rechargeable battery pack. When the calibrator is plugged into the mains supply the internal batteries will automatically start to recharge. If unplugged from the mains during operation the internal batteries will continue to power the instrument. Full charge allows 12 hours typical use. The battery condition monitored by a meter on the front panel.
