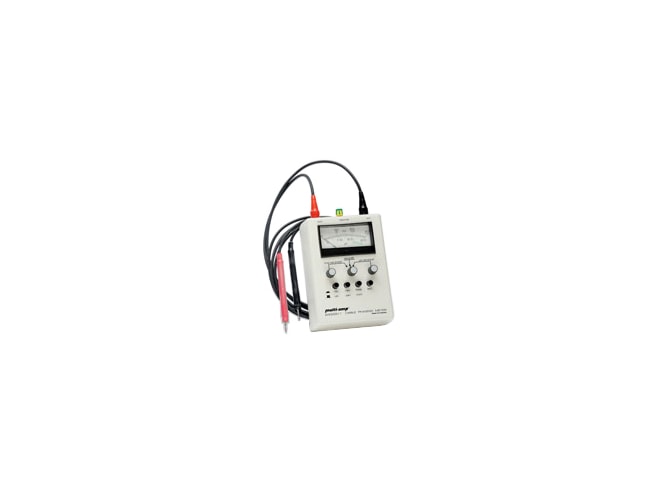

Megger 830220-1 Cable Phasing Meter

Operates at low voltage, battery operated, measures voltage up to 30 kV, measures capacitance of test point if system voltage is known.

$3,565.00 Found a better price? Let us match.

View Company Reviews
Part Number
  • 830220-1
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Operates at low voltage
  • Voltage ranges:
    • 0 to 15 kV
    • 0 to 30 kV
  • ±8% accuracy
  • 300 hrs of battery operation (4 AA batteries)
  • 50 or 60 Hz frequency
  • Tap capacitance setting: 0.4 to 3 pF

What's in the Box

  • Lead set
  • Leather carrying case
  • Four AA batteries
  • Instruction manual

The Megger 830220-1 Cable Phasing Meter offers a safe and quick method of measuring voltage and determining phase rotation of underground distribution systems using the capacitance test point of elbow connectors. Most manufacturers of high-voltage cable terminators incorporate capacitance test points into their elbow connectors. These test points are designed for measuring purposes.

The Cable Phasing Meter is an instrument designed to measure voltage, determine phase potation and phase out cables when connected to the capacitive test points. This instrument is battery operated and is supplied with a ground and two measuring leads.
