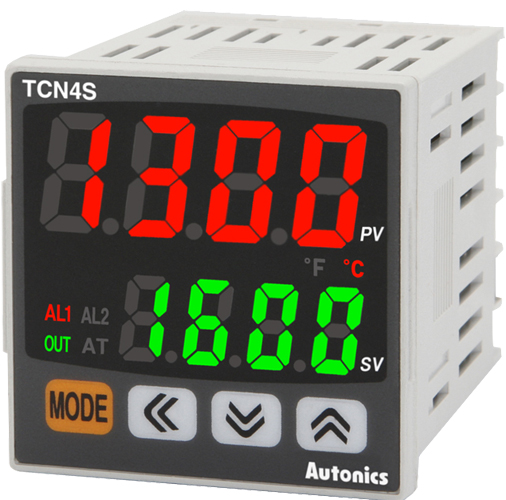

Autonics TCN Series Temperature Controllers

Economical temperature controllers with dual preset indicator display to increase user convenience.

Features

  • Dual preset indicator displays SV & PV simultaneously
  • 8 types of input sensors
    • Thermocouple types K, J, L, T, R & S​
  • RTD types Pt100 & Cu50
  • Power supply: 100-240VAC 50/60Hz or 24VAC 50/60Hz, 24-48VDC
  • Available in four sizes: 1/16 DIN, 1/8 DIN, 1/4 DIN and 72mm x 72mm
  • Compact design and large display panels for better viewing
  • Built-in relay output or SSRP output selectable and 2EA alarm outputs supported
  • SSRP output makes phase control and cycle control possible
  • ON/OFF and PID control
  • Advanced PID control algorithm and 100ms sampling speed
  • CE and UL approved
  • Approx. 38% reduced size compared with existing models (depth-based)

The Autonics TCN Series is economical temperature controllers having dual preset indicator display to increase user convenience. The series realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling; in addition, the series allows users to take advantage of economical controlling with SSRP and relay outputs. The Autonics TCN Series is also available in low voltage models for wider user options.

Autonics SRH1 Solid State Relay
Autonics SRH1 Solid State Relay

Single-phase, integrated heatsink type SSR, dielectric strength of 4000 VAC.

Some Models in Stock
Starting at $26.00
Part Number Price Available
TCN4S-24R
Show Configuration
$114.00 5 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
