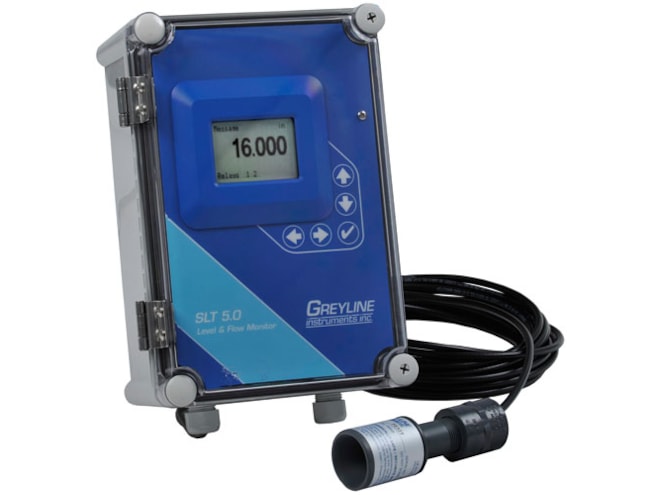

Greyline Instruments SLT 5.0 Level & Flow Monitor

Non-contact ultrasonic system used to measure & control liquid level or monitor & totalize open channel flow through any flume or weir.

Retired products cannot be ordered

For replacement see the Greyline Instruments OCF 6.1 Open Channel Flow & Tank Level Meter

View Company Reviews

Manufactured

By Pulsar Measurement, Trading Name of Greyline

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs (2 Files)

Features

Non-contact measurement of level or open channel flow
±0.25% of Range or 2mm (0.08in) accuracy
Repeatability and Linearity: ±0.1%
Simple 5-key calibration
Isolated 4-20mA output
Programmable control relays
NEMA4X (IP66) polycarbonate enclosure
- Watertight & dust tight with shatterproof cover
False echo rejection
2 programmable control relays (upgradeable to 6)
Electrical surge protection
Intrinsically safe sensor option
Plug and play relay and data logger options

What's in the Box

Level sensor
Coaxial sensor cable
PC software utilities disk
Installation and operation manual
NIST certificate

The Greyline Instruments SLT 5.0 level and flow monitor is a versatile instrument designed to continuously measure, display, transmit and control liquid level in storage tanks and pumping stations, or to monitor and totalize open channel flow through any flume or weir. The non-contact ultrasonic sensor mounts above the liquid being measured so it will not obstruct the flow nor be prone to fouling.

The SLT 5.0 is easy to set up and operate. Use the built-in 5-button keypad/menu system to input the calibration parameters and the SLT 5.0 will quickly calculate the volume in horizontal round tanks, or flow rate (and total) through any flume or weir. The standard PVC and Teflon sensor is rated for measurement ranges up to 32ft. The SLT 5.0 provides an accuracy up to 0.25% of Range or 2mm (0.08in) whichever is greater.

The SLT 5.0 has an isolated 4-20mA output which can transmit flow data to remote chart recorders or displays. The two control relays (upgradeable to six) are programmable for level/flow alarm, and flow proportionate pulse (for samplers, chlorinators or remote totalizers). An Intrinsic Safety Barrier is optional for sensor and cable installation in hazardous rated locations. The separate, watertight electronics/display enclosure is mounted at a convenient location within 500ft (150m) of the sensor

Spec Sheets

Manuals

Greyline Instruments SLT 5.0 Level & Flow Monitor Manual PDF (1.0 MB)

Other

Cables

Greyline Instruments XC Sensor Cable

RG62AU coaxial cable available in lengths up to 500 feet.

Starting at $55.00

Sensors/Probes

Greyline Instruments PZ15-LP Level Sensor

Low profile, non-contacting ultrasonic level sensor ideal for confined spaces and small flumes.

Some Models in Stock

Starting at $655.00

Greyline Instruments PZ15 Level Sensor

Non-contacting ultrasonic level sensor is small enough for very small flumes and powerful enough for really large applications.

Some Models in Stock

Starting at $655.00

Greyline Instruments PZ34 Level Sensor

Non-contact, PVC level sensor with 32 foot range with liquids.

In Stock

$815.00

Greyline Instruments PZ32T Level Sensor

Non-contact, PVC and Teflon level sensor with 32 foot range with liquids.

In Stock

$655.00

Greyline Instruments PZ32TE Level Sensor

Non-contact, Teflon level sensor with 32 foot range in liquids.

$890.00

Accessories

Please consider these optional accessories.

Greyline Instruments JB2X Sensor Cable Junction Box

NEMA4X/IP66 polycarbonate junction box for extending sensor cable lengths.

In Stock

$64.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Manhole Flow Monitoring

The Background: Our customer is a municipal utility that needs to monitor flow through an open channel accessed through a manhole.

The Problem: The flow though the channel is intermittent drainage and, as such, the application cannot insure the full pipe standard that standard inline flow meters require.

The Solution: We recommended the Greyline SLT5.0, a non-contact ultrasonic flow meter optimized for open channel flow monitoring. After installing a flume in the channel, the SLT 5.0 was used to measure the fluid level in the flume and calculate the flow rate and total flow through the channel.
