Greyline Instruments OCF 5.0 Open Channel Flow Monitor

Continuously monitor, display, totalize and data log flow through any flume or weir.

Greyline Instruments OCF 5.0 Open Channel Flow Monitor
Greyline OCF 5.0 Open Channel Flow Monitor

Retired products cannot be ordered

The Greyline Instruments OCF 6.1 Open Channel Flow & Tank Level Meter is the suggested replacement

View Company Reviews

Part Number

OCF 5.0A-1-A-1-D-1-A-2-A

Manufactured

By Pulsar Measurement, Trading Name of Greyline

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs (2 Files)

Features

Non-contacting ultrasonic sensor
Accurate and verifiable
±0.25% of range accuracy
Built-in 2-million point data logger
USB outputs to Flash memory sticks
Isolated 4-20mA/0-5V output
PZ15 level sensor, PVC, 8in deadband, 15ft range
100-240VAC 50/60Hz power input
-5 to 140°F (-20 to 60°C) enclosure temperature
Standard electronics protection, no circuit board coating
Standard barriers not rated intrinsically safe
25ft RG62AU coaxial sensor cable
2 programmable control relays
Simple 5-key calibration with language selection
Password protected
On-screen flow reports
NEMA4X (IP 66) polycarbonate enclosure
- Water & dust tight with shatterproof cover

What's in the Box

Level sensor
Coaxial sensor cable
Greyline Data Logger software for Windows
Installation and operation manual
NIST certificate

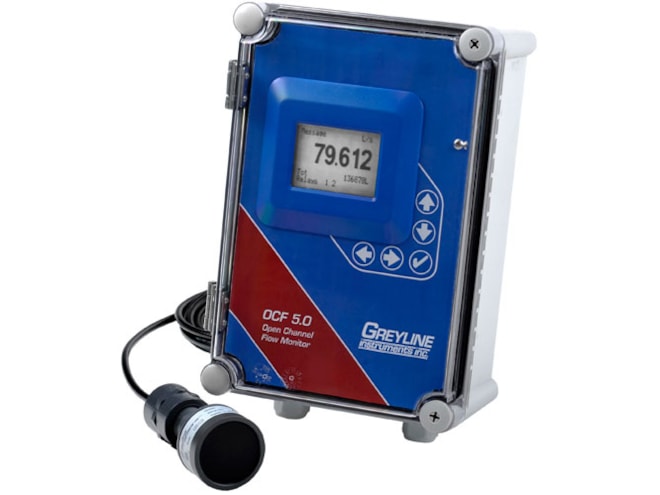

The Greyline Instruments OCF 5.0 open channel flow meter is designed to continuously monitor, display, totalize and data log flow through any flume or weir. Featuring an ultrasonic sensor that mounts above the flowing water, the OCF 5.0 will not obstruct the flow nor be prone to fouling.

The OCF 5.0 is easy to set up and operate. Use the built-in Keypad/menu system to select your flume or weir from the menu and to choose the measurement unit. Flow reports including minimum, maximum, average and total daily flow can be viewed directly on the backlit LCD display. The OCF 5.0 also includes a built-in, 2-million point data logger and flow reporting system. Connect a flash memory stick to the flowmeter's USB output to download log files and then view your data in graph and table formats with 'Greyline Logger' software.

The Greyline Instruments OCF 5.0 open channel flow meter has an isolated 4-20mA output which can transmit flow data to remote chart recorders or displays. The two control relays (upgradeable to six) are programmable for level/flow alarm, and flow proportionate pulse (for samplers, chlorinators or remote totalizers). An Intrinsic Safety Barrier is optional for sensor and cable installation in hazardous rated locations. The separate, watertight electronics/display enclosure is mounted at a convenient location within 500ft (150m) of the sensor.

Spec Sheets

RG62AU coaxial cable available in lengths up to 500 feet.

Starting at $50.00

Sensors/Probes

Greyline Instruments PZ15-LP Level Sensor

Low profile, non-contacting ultrasonic level sensor ideal for confined spaces and small flumes.

Some Models in Stock

Starting at $635.00

Greyline Instruments PZ15 Level Sensor

Non-contacting ultrasonic level sensor is small enough for very small flumes and powerful enough for really large applications.

Some Models in Stock

Starting at $635.00

Greyline Instruments PZ34 Level Sensor

Non-contact, PVC level sensor with 32 foot range with liquids.

In Stock

$795.00

Greyline Instruments PZ32T Level Sensor

Non-contact, PVC and Teflon level sensor with 32 foot range with liquids.

$635.00

Greyline Instruments PZ32TE Level Sensor

Non-contact, Teflon level sensor with 32 foot range in liquids.

$865.00

Accessories

Please consider these optional accessories.

Greyline Instruments JB2X Sensor Cable Junction Box

NEMA4X/IP66 polycarbonate junction box for extending sensor cable lengths.

$62.00

Greyline Instruments SMS Sensor Mounting Stand

Sensor Mounting Stand (for Open Channel applications) for the OCF 5.0 Open Channel Flow Monitor.

$290.00

Greyline Instruments SCR Enclosure Sunscreen

Enclosure Sunscreen (iridite aluminum).

$44.00

Greyline Instruments PZS Sensor Sunscreen

Sensor Sunscreen (iridite aluminum).

$20.00

Greyline Instruments SBMS Sensor Submergence Shield

Sensor Submergence Shield (PVC).

$230.00

Greyline Instruments SP1 Surge Protection

Lightning / surge protector in NEMA4 steel enclosure for use with the OCF 5.0 open channel flow monitor.

$770.00

Greyline Instruments MNL Additional Manuals

Additional Manuals (One supplied with each unit).

$31.00

Greyline Instruments PM Enclosure Panel Mount Flange Assembly

Enclosure panel mount flange assembly.

$155.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Gravity Feed Flow Monitoring

The Background: Our customer is a commercial orchard that needs to monitor the amount of irrigation water being diverted from a nearby stream.

The Problem: The stream water is gravity fed into a pipe that transports the water to the orchard. Most flow meters require a completely full pipe to accurately measure the flow, something which is not possible in most gravity feed applications such as this.

The Solution: The customer was able to deploy a Greyline OCF 5.0 open channel flow monitor with a Parshall flume, enabling them to accurately monitor water usage. Compatible with a wide variety of standard flumes and weirs, or user programmable for a custom application, the Greyline OCF 5.0 allows simple irrigation flow monitoring and the ability to log flow data or output to another device.
