• -4 to 2192°F (-20 to 1200°C)
  • ±2°C or 2% accuracy
  • 1.31mRad spatial resolution
  • 320 x 240 (76,800 pixels) resolution
    • 640 x 480 (307,200 pixels) with SuperResolution
  • <0.045°C @30°C target temp (45mK) thermal sensitivity
    • Filter mode <0.03°C @30°C target temp (30mK)
  • 15cm minimum focus distance
  • 24° x 17° field of view
  • 60Hz frame rate
  • 180° degree rotating lens
  • 5.7 inch responsive touchscreen LCD
  • Image sharpening improves image clarity and quality
  • LaserSharp auto focus & built-in distance meter
  • 2x, 4x, 8x digital zoom
  • Streaming video via USB or WiFi
  • IR-Fusion technology
  • Voice and text annotation
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

  • Standard infrared lens
  • AC power supply & battery charger
  • 2 Lithium ion batteries
  • USB cable
  • HDMI video cable
  • Rugged, hard carrying case
  • Adjustable neck and hand strap
  • Bluetooth headset (where available)
  • Warranty registration card
  • Calibration certificate
  • Flash drive with manuals (English & other languages)
  • SmartViewR software

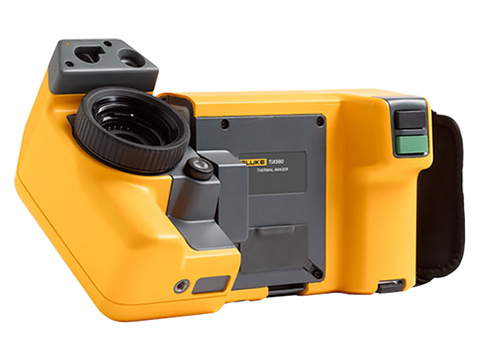

The Fluke TiX560 Infrared Camera is a professional-level thermal imager loaded with all the features needed to do the job well. The TiX560 offers premium image quality, a 180° degree rotating lens to get tough shots from any angle, LaserSharp autofocus which uses a built-in laser distance meter to focus with pinpoint accuracy, Fluke Connect which offers Bluetooth connection to a large selection of wireless test and measurement tools, and a range of accessories to customize your imager for any task.

Images captured by the TiX560 are displayed on the large, 5.7 inch responsive touchscreen LCD. Voice and text annotations are possible. There are extensive memory options: a removable micro SD memory card, on-board flash memory, save-to-USB capability, or direct download via USB-to-PC connection. Streaming video is supported via USB or WiFi.







Please consider these optional accessories.


This product can be used in the following applications:
