• Built with Fluke Connect
  • 640 x 480 (307,200 pixels) resolution
  • Super resolution enhancement mode 1280 x 960 (1,228,800 pixels)
  • 0.8 mRad spatial resolution
  • Temp Range: -40 to 3632°F (-40 to 2000°C)
  • ±1.5°C or ±1.5% accuracy
  • 60 Hz frame rate
  • IR-Fusion technology
  • SDHC memory card
  • Lasersharp, auto/manual focus
  • Eversharp multifocal recording

What's in the Box

  • Two rechargeable batteries
  • Battery charger and adapter
  • AC adapter
  • SD card reader
  • FC SD card for Fluke Connect
  • Protective lens cap
  • Hand strap
  • Neck strap
  • Carrying case
  • Warranty card
  • Safety instructions
  • Calibration certificate
  • CD of product manuals & SmartView software

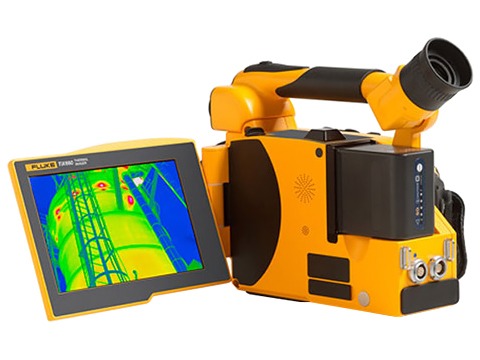

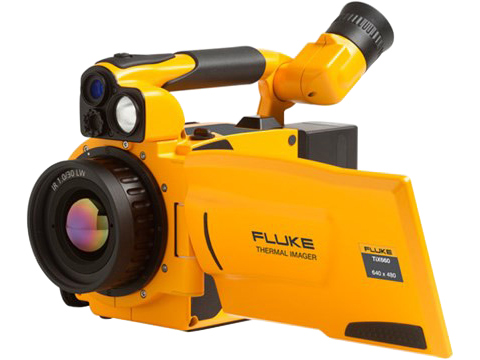

The Fluke TiX660 Infrared Camera is part of the first HD infrared camera that are built with Fluke Connect. The TiX660 features 640 x 480 (307,200 pixels) resolution and a 32.4° x 24.7° (1.0/30 mm) field of view. The Super Telephoto lens allows you to see a 5mm (0.2in) from 35m (115ft) away. The TiX660 features the most advanced focus options available for consistently in focus image: LaserSharp Auto Focus, auto focus, manual and EverSharp multifocal recording features available on one camera.

The Fluke Expert Series offers the best flexibility of the entire Fluke infrared camera portfolio to capture spectacular images close up or from a distance. The TiX1000, TiX660 and TiX640 are compatible with 8 lens options (2x and 4x telephoto lenses, 2 wide angle lenses, 3 macro lenses and 1 standard lens) so great images can be captured despite certain obstacles.


This product can be used in the following applications:
