FLK-TiX620 30Hz

Fluke

Usually ships in 6 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • -40 to 1112°F (-40 to 600°C) temp measurement
    • ±2K or ±2% accuracy
  • ≤0.04°C at 30°C target temp (40mK)
  • 0.85mRad IFOV (spatial resolution)
  • 7.5 to 14μm spectral range
  • 32.7° × 24.0° field of view with standard lens
  • 30Hz frame rate & up to 32x digital zoom
  • Emissivity correction (manual or material table)
  • Reflected background temperature compensation
  • Text and voice annotation
  • IP54 enclosure rating
  • 2-year warranty

What's in the Box

  • Rechargeable battery
  • Battery charger & adapter
  • AC adapter
  • SD card reader
  • Protective lens cap
  • Hand and neck straps
  • Carrying case
  • Warranty card & safety instructions
  • Calibration certificate
  • CD with product manuals (multi-language)
  • SmartView Software

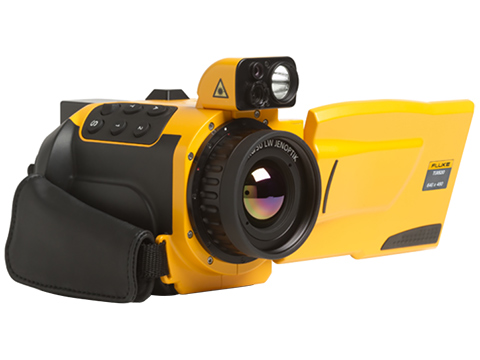

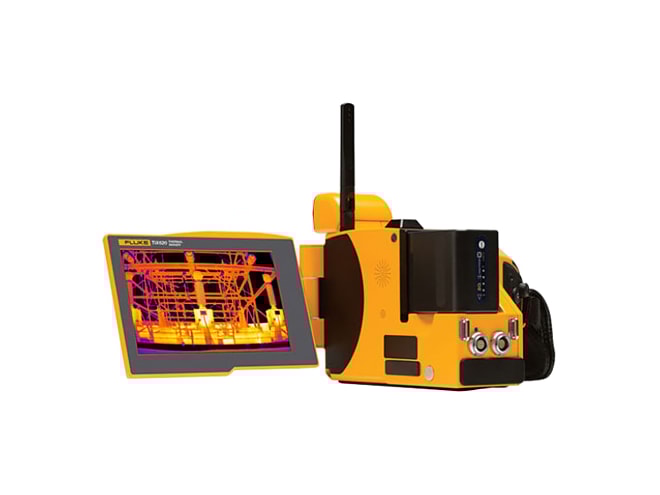

The Fluke TiX620 infrared camera features IR-Fusion technology with AutoBlend mode, picture-in-picture, continuous blending, and color alarms (above and below user defined temperatures). It has an extra-large 5.6 inch color TFT display (1280 × 800 pixel resolution), suitable for daylight operation and built-in GPS for geo-referencing.

The TiX620 has an 8 megapixel resolution digital, visible light camera for image and video recording. It is compatible with MATLAB and LabVIEW platforms to allow you to integrate camera data, infrared video and images to support R&D analysis.

Calibration

Fluke Lens Calibration
Lens calibration for the TiX1000, TiX660 and TiX640 camera models
  • FREE Gift with purchase of $250 or more
$3,099.99
Fluke Subwindow Calibration
Calibration for Subwindowing option for TiX1000, TiX660 and TiX640 camera models
  • FREE Gift with purchase of $250 or more
$3,099.99

Cables

Fluke Spare Ethernet Cable
Spare ethernet cable for TiX1000, TiX660 and TiX640
  • FREE Gift with purchase of $250 or more
$159.99
Fluke Spare HDMI Cable
Spare HDMI cable for the TiX1000, TiX660 and TiX640 camera models
  • FREE Gift with purchase of $250 or more
$109.99

Software

Fluke Connect Measurements Android App
Wireless cloud-based program that communicates data from your testing tool to a mobile device
  • FREE Gift with purchase of $250 or more
$0.00
Fluke Connect Measurements iOS App
Wireless cloud-based program that communicates data from your testing tool to a mobile device
  • FREE Gift with purchase of $250 or more
$0.00

Batteries/Chargers

Fluke XBattery Spare Rechargeable Battery
Spare rechargeable battery with charge indicator for TiX1000, TiX660 and the TiX640 camera models
  • FREE Gift with purchase of $250 or more
$609.99
$548.99
Fluke FLK-XCharger Spare Charger
Spare charger for TiX1000, TiX660 and the TiX640 camera models
  • FREE Gift with purchase of $250 or more
$359.99
$323.99

Accessories

Please consider these optional accessories.

Fluke XPower Plug
Power plug with 5 extensions for TiX1000, TiX660 and TiX640 camera models
  • FREE Gift with purchase of $250 or more
$359.99
$323.99
Fluke FLK-Xlens Lenses
Optional lenses for the TiX series, standard, wide, telephoto & macro options available
  • FREE Gift with purchase of $250 or more
$5,799.99
Fluke Professional Tool Backpack
Durable high-quality polyester, injection molded plastic bottom base, six storage compartments
$199.99
