HOBO ConLab AC Transmitter Sensors
Starting at $139.00

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Ranges available:
    • 0 to 150 volts RMS
    • 0 to 300 volts RMS
  • Sensor accuracy:
    • less than ±0.1% of span (20% to 120% of range)
    • ±0.25% of span (10% of range)
  • Over range: +20% of span
  • Over load: +40% of span
  • Frequency: 60 Hz AC
  • Supply: Self-powered
  • Output: 0 to 20 mA
  • Plastic polycarbonate housing

This product is an accessory for the following products:

HOBO U12 Series Data Loggers
Multi-channel energy and environmental monitoring, records up to 4-channels, 43,000 measurements
$140.00
HOBO U12 Series Temperature Data Logger
Food-grade 316 Series stainless Steel, 43,000 measurements, -40 to 257°F (-40 to 125°C) temp range
$272.00
HOBO U12-008 Data Logger
4-Channel external data logger can employ multiple energy and environmental sensors, ranging from amps to temperature
$249.00
HOBO ZW Series Wireless Data Loggers
Wirelessly monitor and transmit real-time building performance data, scales up to a network of 100 nodes
$186.00

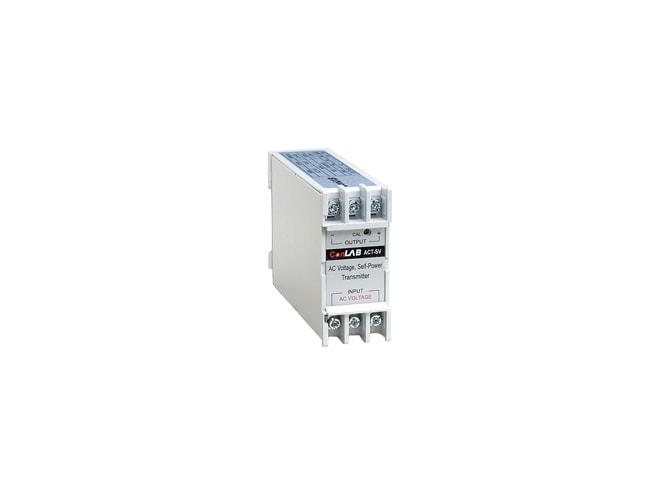

The HOBO ConLab AC Transmitter Sensors are self-powered transformer for monitoring sine wave, single-phase AC voltage. Requires Input Cable for use with U12 loggers. They can be plugged directly into the external input jacks of U12 and ZW Family loggers to expand the range of measurement options and applications.
