Starting at $186.00

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Real-time wireless data collection
  • Measurements include temp, RH, analog & pulse ports
  • Scales up to a network of 100 nodes
  • Buffer memory: 3k, 4k or 5k measurements
  • Sample rate from 1min to 18hr
  • One year battery life at 15min logging intervals
  • Alarm notifications via email or text messages

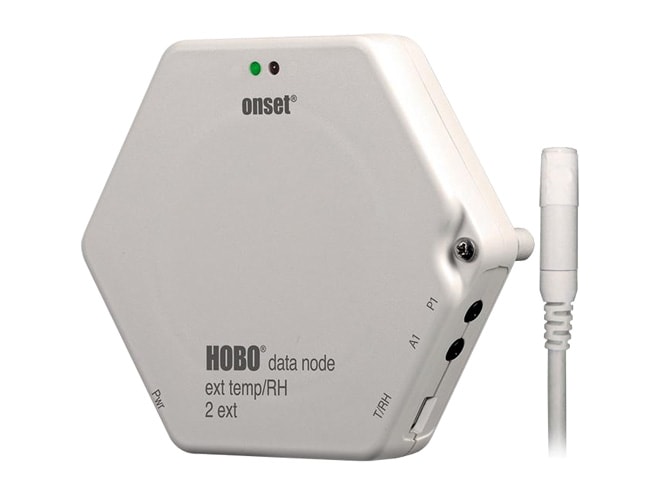

The HOBO ZW Series Wireless Data Loggers provide centralized monitoring of energy and environmental conditions in buildings. The ZW Series scales up to a network of 100 nodes sending data to a single receiver. It also creates a self-healing network using routers to overcome obstructions in communications paths.

Supported measurements for the ZW Series include air velocity, AC current, AC voltage, amp hour, C02, compressed air flow, DC current, DC voltage, differential pressure, gauge pressure, kilowatt hours, kilowatts, power factor, pulse signals, temperature, relative humidity, dew point, volatile organic compound, volt-amp reactive, volt-amp reactive hour, volt-amps, water flow, watt hours, watts, volts, amps, 0-10 VDC, 4-20mA.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

HOBO ZW-RCVR Data Receiver
Collects incoming logged sensor data from HOBO data nodes and transfers the data to the computer via USB cable
$219.00
HOBO ZW-ROUTER Data Router
Routes data from networked HOBO data logger to ensure the data is transmitted back to the receiver
$175.00
HOBO CABLE-USBMB USB Cable
USB logger-to-PC communications cable, six feet long and coated in black plastic
$10.00
In Stock

Cables

HOBO DC Voltage External Input Cable
Provide analog sensor inputs of 0 to 5, 10 or 24 VDC, 1.9 m (6.3 ft) long cable
$12.00
In Stock
HOBO Voltage Input Cable
External input cable with 13mm (0.5") tinned braided wire leads, 1.8 m (6 foot) long cable
$10.00

Software

HOBO HOBOware Pro Software
Plot or export data to spreadsheets, time saving tools to fast setup, readout and export, compatible with all HOBO data loggers
$99.00
In Stock

Sensors/Probes

HOBO TMC Air/Water/Soil Temp Sensors
Measures temperature in air, water, or soil, 1 ft, 6 ft, 20 ft and 50 ft lengths available
$35.00
HOBO TMC6-HC Stainless Steel Temperature Probe
6 foot Stainless Steel Temperature Probe
$87.00
HOBO TMC6-HE Temperature Sensor
Plated copper temperature sensor probe that can be mounted to a pipe or flat surface
$39.00
In Stock
HOBO F900 Air Velocity Sensor Series
Up to 10 m/s (1969 fpm) measurement range, designed for indoor environments
$280.00
HOBO CTV Series AC Current Sensors
Split-core AC Current Sensor, measures as low as 2 amps and as high as 600 amps
$95.00
HOBO T-VER-971BP-200 Split-Core Bi-Polar DC Transducer
Measures up to 200 Amps of DC current in both flow directions, adjustable span range
$245.00
HOBO T-ION-TVOC Volatile Organic Compound Sensor
Measures volatile organic compounds with TVOC sensor, selectable measuring ranges of 10, 100 and 1000 ppm
$3,999.00

Accessories

Please consider these optional accessories.

HOBO CDI-5200 / CDI-5400 Compressed Air Flow Meters
Adds the ability for users to be able to measure compressed air flow (SCFM), fits 1 inch or 2 inch steel pipes
$495.00
HOBO T-VER-E50B2 Power / Energy Meter
True RMS up to the 21st harmonic 60 Hz, One to three phase AC system
$625.00
HOBO WNB-3D WattNode 3-Phase Series Transducers
Measures 1, 2, or 3 phases in 2, 3, or 4 wire configurations, pulse output, use with wide variety of CT's
$269.00
HOBO Veris Kilowatt Transducer Sensor
Three 100 amp split core current transformers, 480 Volts AC rms input voltage
$845.00
HOBO Veris Kilowatt Hour 1-Phase / 3-Phase Transducers
300 or 800 amp sensors, split-core installation eliminates the need to remove conductors, accurate electronic pulse output
$660.00
In Stock
HOBO ConLab AC Transmitter Sensors
Self-powered transformer for monitoring sine wave, single-phase AC voltage. 150 anf 300 volts RMS range options
$139.00
HOBO WattNode Branch Circuit Transducer Sensor
Measures up to 3 separate branch circuits simultaneously, accurate measurement of multiple single phase or each phase of 3-phase configurations
$249.00
HOBO WattNode 1 / 2 / 3 Phase Wye kWh Transducer Sensor
Measures 1, 2, or 3 phases in 2, 3, or 4 wire configurations
$229.00

Applications

This product can be used in the following applications:

Application Notes

Here's how some of our customers used this product.

Complete Building Temperature Datalogging

The Background: Our customer is a building manager that needs to monitor the temperature at several locations within a building as part of a survey.

The Problem: The building is approximately 20,000 square feet so the survey will require several points be monitored and the customer does not want the expense of having to wire all these units. Additionally, the survey will monitor temperature over time so the data points must be recorded.

The Solution: We suggested the HOBO ZW Series Wireless Data Loggers which are designed to provide centralized monitoring of energy and environmental conditions in buildings. The ZW Series scales up to a network of 100 nodes sending data to a single receiver. It also creates a self-healing network using routers to overcome obstructions in communications paths.
