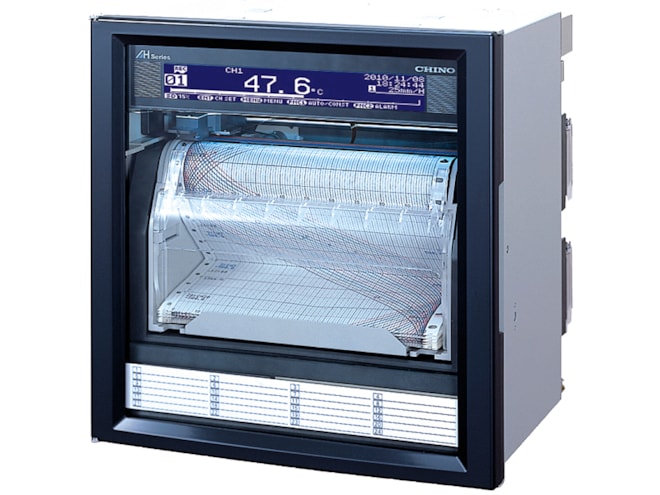

CHINO AH4000 Series Hybrid Strip Chart Recorders
180mm chart multi-point type hybrid memory recorder with simultaneous & digital display.

Overview
Features
- 6, 12 & 24 measuring points
- Input types:
- DC voltage / current (via shunt resistor)
- Thermocouple
- Resistance thermometer
- Accuracy: ±0.1% of measuring range ±1 digit
- Measuring interval:
- 1 s/ 6 point, 2 s/ 12 point, 4 s/ 24 point
- 1-year warranty
- Conforms to CE, UL and CSA
- Protection: IEC 60529 IP54
Description
The CHINO AH4000 series hybrid strip chart recorders are multi-point recorders that feature a simultaneous display, digital display, and bar graph display. Choose between 6, 12 and 24 measuring points. Measuring and recording settings are controlled by an easy to use front key pad. The AH4000 handles inputs of DC voltage/current (via external shunt), thermocouples, and RTDs.
Additional features:
- USB port connects directly to your PC
- RS232C, RS422A, RS485, and Ethernet communication interface options
- Chart end detection function
- Standard alarm/printing function
- SD card (sold separately) can record data, read and write setting value
Documents
Spec Sheets
Manuals
- CHINO AH4000 Series Hybrid Strip Chart Recorders Manual PDF (3.5 MB)
- CHINO AH4000 & Ethernet Communication Manual PDF (4.1 MB)
Other
Links
Accessories
Software
Accessories
Please consider these optional accessories.
