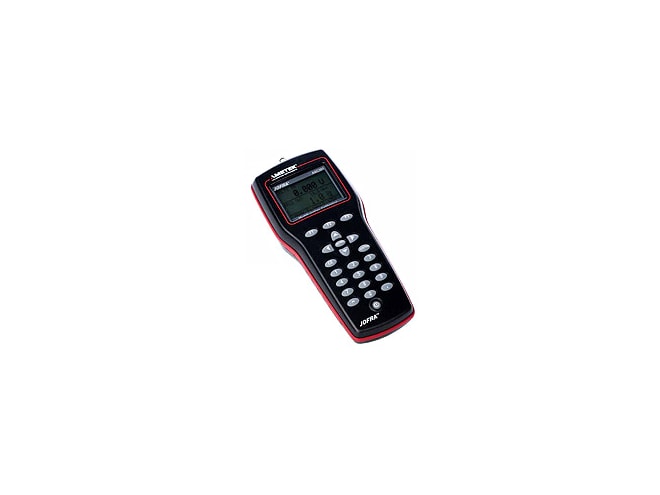

Ametek ASC321 Signal Calibrator

Portable documenting calibrator, simultaneous read-back, fast RTD simulation & 17 built-in engineering units.

Ametek ASC321 Signal Calibrator

Retired products cannot be ordered

For replacement see the Ametek ASC-400 Signal Calibrator

View Company Reviews

Manufactured

By Ametek

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Features

Simultaneous input and output
14 types of RTD
13 types of TC
0 to 24mA DC current
0 to 20 VDC voltage
0 to 10 Khz frequency
5 to 4000 Ohm resistance
Pulse train output
14 to 122°F (-10 to 50°C) operating temp
Fuseless protection
Full numerical keypad

The Ametek ASC321 Signal Calibrator is a full documenting calibrator, using predefined work orders from JOFRACAL. This ensures easy documentation and reduces the possibilities for errors when calibrating in the field.

The ASC series does more than just calibrate signals. Combined with the APM external pressure module or a JOFRA dry block calibrator, an ASC will calibrate pressure and temperature and, if used together with JOFRACAL, document it as well. For workshop use a DC power supply/charger is available.

The full numerical keypad, series of function keys and cursor keys, provide a simple and quick user interface. The new ClearBrite™ graphical display offers the best possible viewing.

The high accuracy of the ASC series has not been achieved on account of fragile measurements or source circuitry, both the ASC301 & ASC321 have fuseless protection – this might save you a calibrator, as well as lowers your cost of ownership.

Ametek ASC321 Signal Calibrators Include Standard:

Battery set (4 x AA)
Manual
RS232 cable and JOFRACAL
2 sets of test leads
Soft case
NIST traceable certificate

Spec Sheets

Ametek ASC321 Signal Calibrator Datasheet PDF (605 KB)

Links

All possible part numbers

Cables

Ametek RS232 Cable

Ametek RS232 Cable

RS232 Cable with Stereo Jack Connector: 2m/6ft.

Batteries/Chargers

Ametek Rechargeable Batteries

Ametek Rechargeable Batteries

Rechargeable batteries for Ametek calibrators.

Ametek Battery Charger

Ametek Battery Charger

Battery charger for Ametek rechargeable batteries.

Accessories

Please consider these optional accessories.

Ametek Thermocouple Plug

Ametek Thermocouple Plug

Thermocouple plugs for Ametek dry block calibrators.

Starting at $18.00
