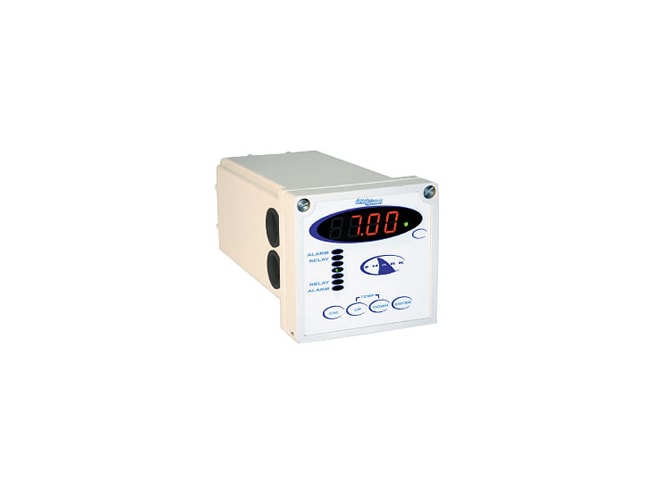

AquaMetrix SHARK Multi-Parameter Controller

pH, ORP, conductivity and flow parameters available, two control relays plus one alarm relay that can be used for process control.

Retired products cannot be ordered

For replacement see the AquaMetrix 2250 Series Flow Controller

View Company Reviews

Manufactured

By AquaMetrix

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

0.01 to 14.00 pH
±1999 mV (sensor dependent)
32 to 212°F (0 to 100°C)
0 to 19.9 MΩ
0 to 9999 selectable flow rate units
Relay cycle on/off timers
Two 4-20mA outputs with range expandability
High/Low alarm relay
1/4 DIN
NEMA 4X enclosure

The AquaMetrix SHARK Multi-Parameter Controller is designed to be the most flexible, easy to use, and easy to see multi-parameter controller on the market. Select the parameter you wish to measure from the easy-to-use LCD menu on the inside front cover. Choose pH, ORP, Conductivity or Flow. The Shark features a hidden display for setting the parameter and that flips out for easy access. A universal mounting kit is included for surface, panel, and pipe-mount applications.

The Shark provides two isolated, independent and scalable 4-20 mA outputs and two control relays. A third relay is preset to act as an alarm relay, but can be used as a process control relay. It has both high and low adjustable off and on set-points. Both control relays can be set for either a rising or falling process, with easily programmed on/off set-points. Each control relay has a built-in independent cycle timer, with field-set on and off time to reduce chemical overshoot. The Shark is housed in a rugged NEMA 4x polycarbonate enclosure, making it ideally suited for heavy-duty applications.
