Starting at $11,016.00

Not in stock. Usually ships in 2-3 weeks. Call for expedite options [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • ±30.0000V
  • ±30.0000mA
  • 0.000 to 22.000mA current source
  • Pressure types:
    • Low / differential pressure
    • Gauge pressure
    • Gauge / absolute pressure
    • Barometric pressure
  • <0.005% FS control stability
  • Accuracy:
    • 0.02% FS
    • 0.05% FS (ADT761-LLP)
    • 0.01% FS (ADT761-BP)
  • 32 to 122°F (0 to 50°C) operating temp
  • 120 files max data storage
  • 7 inch LCD color screen
  • 5 readings per second display rate
  • ADT 160 series pressure module compatible
  • CE mark

What's in the Box

  • External pressure manifold
  • 110V/220V external Power adapter
  • Chargeable Li-ion battery
  • Test leads for calibrator
  • Short circuit cable
  • Carrying case

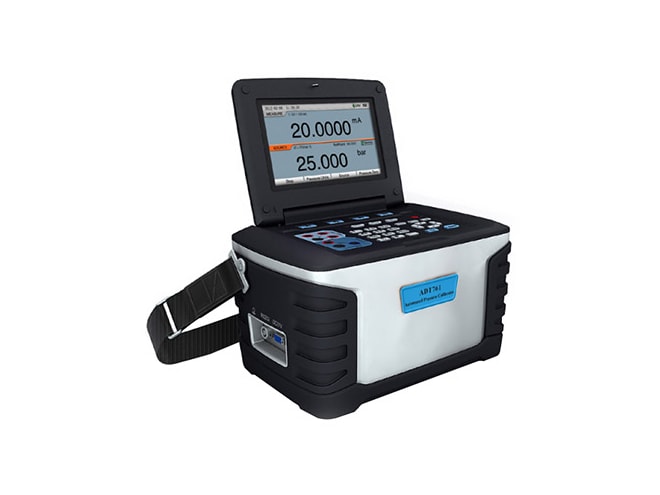

The Additel ADT 761 automated pressure calibrator features a built-in high performance electronic pump and precision pressure controller. To improve its accuracy the Additel 761 has two pressure modules with differing ranges built-in and integrated with the internal pump and controller. It is an ideal solution for calibrating gauges, transmitters, and switches both in the field and in the laboratory.

In a portable package, this calibrator can automatically generate pressures from 90% vacuum to 600 psi (40 bar) with 0.005% FS pressure control stability and 0.02% FS accuracy. With optional external pressure modules (the 160 series), the 761 can measure pressures up to 10,000 psi (700 bar) with 0.025%FS accuracy. In addition to the pressure generation, control, and measurement capabilities, the 761 also features HART communication capability, supplies 24V loop power, and reads the current or voltage produced by the pressure transducers.

Additel 9022 Test Leads
Two pairs of test leads for the ADT761 automated pressure calibrator
$68.00
Additel ADT100-761-N4 Hose
Hose test kit with 5 feet of flexible hose, 0.156 inch (4mm) tube to 1/4NPT female & hand-tight quick connector
$322.00
Additel ADT100-761-B4 Hose
Hose test kit with 5 feet of flexible hose, 0.156 inch (4mm) tube to 1/4BSP female & hand-tight quick connector
$322.00
Additel ADT106-N External Pressure Manifold
External Pressure Manifold with two 1/4NPT hand-tight quick connectors
$735.00
Additel ADT106-B External Pressure Manifold
External pressure manifold with two 1/4BSP hand-tight quick connectors
$735.00
Additel 9510 Software
Additel/Cal task management software for multifunction calibrators 221A, 222A, 223A & ADT761
$1,852.00
Additel 9020 Short Circuit Cable
Short circuit cable for the ADT761 automated pressure calibrator
$18.00
Additel ADT 160A Intelligent Digital Pressure Modules
NIST traceable pressure sensors for ranges up to 40,000 psi or 2800 bar, with fully temperature compensated accuracy
$977.00
