Additel ADT 761A Automated Pressure Calibrator
Starting at $14,805.00

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Pressure types:
    • Low / differential pressure
    • Gauge / absolute pressure
  • Control stability to 0.003%FS
  • Accuracy:
    • 0.02% FS (standard accuracy)
    • 0.05% FS (ADT761A-LLP)
    • 0.01% FS (ADT761A-AP)
  • 32 to 122°F (0 to 50°C) operating temp
  • 6 GB data storage
  • 7 inch TFT color screen
  • Up to 1,000,000 readings (data and time stamped)
  • ADT 160A series pressure module compatible
  • CE mark

What's in the Box

  • External pressure manifold
  • External power adapter
  • Chargeable Li-ion battery
  • DP gauge holder
  • Pressure module connection cable
  • Hose test kit
  • Test leads
  • Carrying case
  • ADT100-761 hose
  • O-rings
  • Pressure hoses
  • USB cable
  • Silicone tube

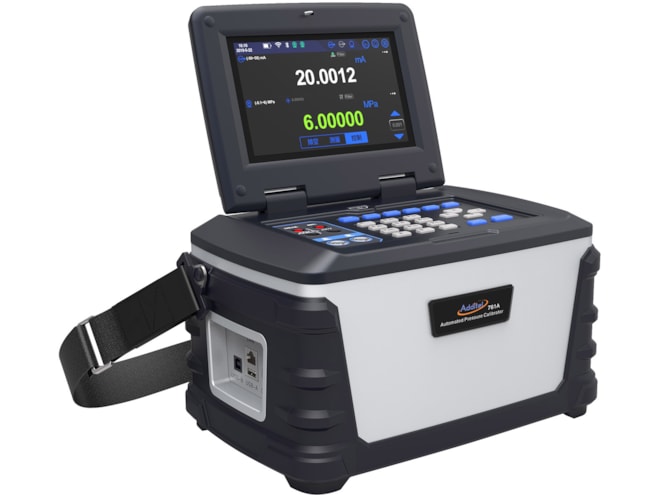

The Additel ADT 761A Automated Pressure Calibrator is completely self contained and automated with a built-in pump for pressure generation and precision control technology. Simply set the desired pressure and watch the calibrator do the work.

The ADT761A features an increased pressure range up to 1,000 psi (70 bar), removable internal pressure modules, optional precision models to 0.01%FS, increased speed to pressure, ability to read two external pressure modules, touch screen display, Wi-Fi, Bluetooth, and Ethernet communications and double the original battery life.
