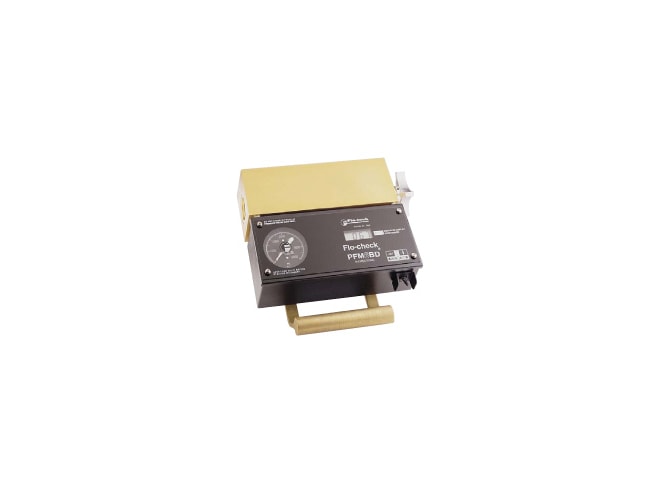

Flo-tech PFM6BD Bi-Directional Hydraulic Tester

Bi-directional tester simultaneously measures flow, pressure & temperature with an internal pressure relief system. Learn more...

Starting at $3,623.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Bi-directional in-line testing capabilities in 3 flow ranges
  • Large 3 1/2 digit LCD for flow and temperature
  • Helical tube pressure gauge
  • 1 toggle switch controls power, selects flow & temp
  • Loading valve with fingertip control of pressure
  • Platinum resistance temperature sensor
  • Pressure surge protection with internal pressure relief
  • Turbine flow sensor provides fast response
  • Pressures up to 6000 psi (414 bar)
  • Temperatures up to 300°F (150°C)
  • ±1% of full scale flow accuracy
  • ±0.2% repeatability

The Flo-tech PFM6BD bi-directional hydraulic testers includes all the features of the standard PFM6 Series with the added benefit of bi-directional flow measurement and an internal pressure relief system. Designed for fast diagnostic troubleshooting of all types of mobile or stationary hydraulic systems and components, these compact testers offer laboratory accuracy and provide flow, pressure and temperature measurements simultaneously from one point.

Calibration

Flo-tech Calibration Certificate
Flo-tech Calibration Certificate

Five or ten point calibration certificate for the USB hydraulic system analyzer.

Starting at $447.69

Accessories

Please consider these optional accessories.

Flo-tech F5140 K Factor Scale
Flo-tech F5140 K Factor Scale

Pre-amplifier for low level turbine meters converts low level frequency outputs into square wave output signals.

$269.00
Flo-tech F5141 Programming Software Kit
Flo-tech F5141 Programming Software Kit

Makes the Flo-tech F5140 K Factor Scale field adjustable converting frequency output of a turbine meter to a different frequency.

$214.00

This product can be used in the following applications:
