AEMC 6609 Phase & Motor Rotation Meter

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • 40 to 600 VAC operating voltage (with leads)
  • 120 to 400 VAC operating voltage (without leads)
  • 15 to 400 Hz frequency range
  • 32 to 104°F (0 to 40°C) operating temp
  • Phase and motor rotation indicators
  • Color-coded leads and alligator clips
  • 9V battery Alkaline (included)
  • 600V CAT III rated and CE Mark

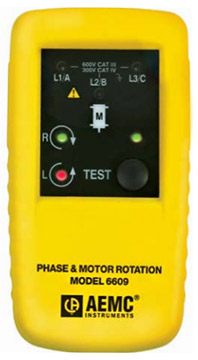

The AEMC 6609 phase and motor rotation meter is a compact and rugged meter designed to identify phase rotation on 3-Phase systems and identify live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output.

The 6609 model is also an ideal tool for measuring the proper rotation of motors, conveyors, pumps and other electrical devices interconnected on the power line system before installation where direction of rotation is dependent on proper phase hook-up.

This meter provides the following functions:

  • Determination of the direction of phase rotation
  • Presence or absence of phase
  • Determination of the direction of rotation of a motor with or without connection
  • Determination of the activation of a solenoid valve without connection

Applications of the AEMC 6609 Phase & Motor Rotation Meter

  • Verify proper phase wiring
  • Detect open or de-energized phases
  • Determine correct wiring for proper rotation on motors, pumps, etc

AEMC 6609 Phase & Motor Rotation Meter Includes

  • Carrying case
  • 3 test leads
  • 3 alligator clips
  • User manual
