KPSI Spare Nose Caps
Starting at $30.00

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

This product is an accessory for the following products:

KPSI 300DS Level Transducer
Deep submersible range of 700 to 4614 ftH2O, small bore 0.75 inch diameter
$1,875.00
KPSI 320 Level Transducer
Small bore, 0.75 inch diameter, submersible up to 700 feet with UL, CUL & FM intrinsic safety approval standard
$642.00
KPSI 330 / 335 Level Transducer
Small bore, 0.75 inch diameter, submersible up to 700 feet with UL, CUL & FM intrinsic safety approval standard
$742.00
KPSI 342 Level Transducer
Asic technology, small bore 0.75 inch diameter, submersible up to 230ft
$589.00
KPSI 700 / 710 / 720 Level Transducers
Submersible up to 700 feet with UL, CUL & FM intrinsic safety approval standard
$442.00
In Stock
KPSI 705 Level Transducers
Teflon coated elastomeric diaphragm and UL, CUL & FM intrinsic safety approval standard, designed for waste water applications
$583.40
KPSI 730 / 735 Level Transducers
Submersible up to 700 feet with UL, CUL & FM intrinsic safety approval standard
$742.00
KPSI 750 Level Transducer
Non-clogging 2.75 inch sensing area with UL, CUL & FM intrinsic safety approval standard for slurry or highly viscous applications
$789.00

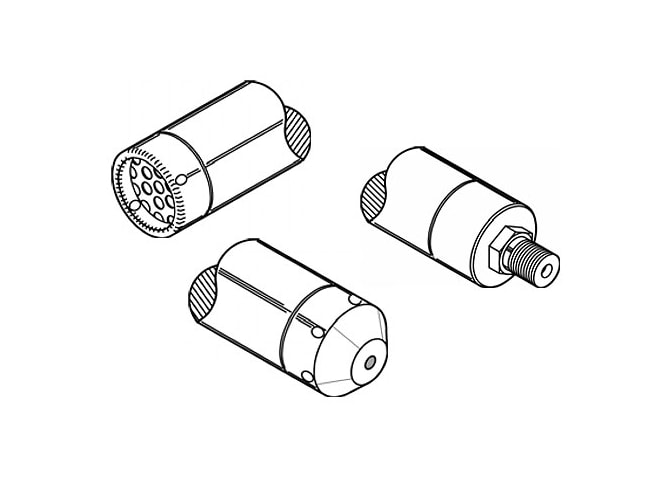

Choose between:

  • Piezometer
  • 1/4 inch NPT male stainless steel
  • 1/4 inch NPT male titanium
  • Open-face
  • Ported
  • 1/2 inch NPT male stainless steel
  • 1/2 inch NPT male titanium

The Open-face Nose Cap offers the best resistance to clogging. This single-piece nose cap provides maximum exposure of the sensing diaphragm to the liquid media through a protective perforated screen on the front. The open-face nose cap is constructed from molded Delrin.

The Ported Nose Cap offers the best protection against damage to the sensing diaphragm. This single-piece nose cap allows the liquid media to enter through 6ea 1/8 inch holes around the outside and includes a #8-32 UNC-2B threaded hole on the front. The closed-face nose cap is constructed of molded Delrin.

The Piezometer Nose Cap offers the best alternative for burying the transducer in the ground without risk to the sensing diaphragm. This two-piece nose cap allows the liquid media to enter through a permeable 40 micron centered stainless steel mesh filter at the front of the cap. The piezometer nose cap is constructed of Delrin.

The Male NPT Pressure Nose Cap offers the best alternative for installing the transducer on a pipe. This single-piece nose cap incorporates a 1/4in-18 or a 1/2in-14 MNPT fitting on the front for connection. The male NPT nose cap is constructed of stainless steel or titanium, as required.

Part Number Price Available
42-02-64180
Show Configuration
Base Price
$30.00
Nose Cap Style
1/2 inch NPT male stainless steel
Reconfigure
$30.00 2

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 business days". Click here to select options
