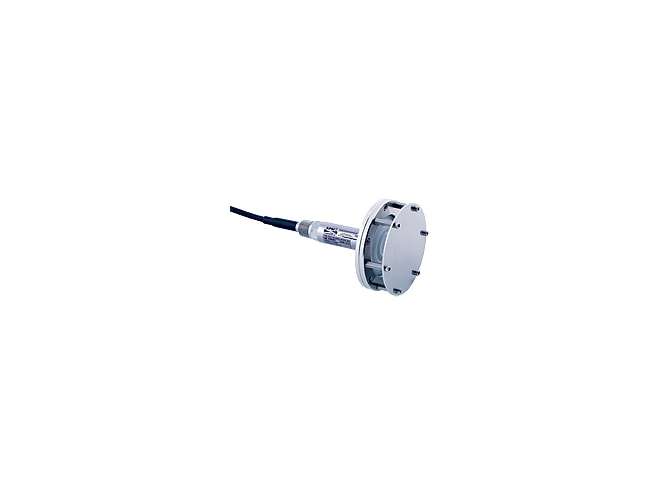

KPSI 750 Level Transducer

Non-clogging 2.75 inch sensing area with UL and CUL safety approvals for slurry or highly viscous applications.

Features

  • UL and CUL safety approvals
  • FM intrinsic safety approval (except for Output "4-20 mA, temp option")
  • Accuracy: ±0.25% FS
  • 5, 10 or 15 psi ranges available
  • Resolution: ±0.0001%FS
  • Welded 316 SS Construction
  • Operating temp: -4 to 140ºF (w/polyurethane cable)
  • Integral Diaphragm Protector
  • Two year warranty
  • Non standard configurations are available with a 25 pc minimum quantity

The KPSI 750 level transducer is a submersible hydrostatic transducer that includes UL and CUL safety approvals. The FM intrinsic safety approval standard is included for all versions except those with output 4-20 mA, temperature option. The transducers are specifically designed to meet the rigorous environments encountered in a slurry or highly viscous application. It provides precision depth measurement under most hostile conditions.

Applications include:

  • Lift stations
  • Waste water
  • Slurry tanks
  • Pump control
KPSI Body Clamp Anode
KPSI Body Clamp Anode

Sacrificial anode body clamp for KPSI level transducers.

In Stock
$36.42
KPSI 840 Junction box
KPSI 840 Junction box

Junction box with 810 SuperDry Vent Filter.

In Stock
$450.02
KPSI 845 Junction Box
KPSI 845 Junction Box

Junction box with 815 Aneroid Bellows.

In Stock
$464.57
KPSI Spare Nose Caps
KPSI Spare Nose Caps

Spare nose caps for KPSI level transducers.

Some Models in Stock
Starting at $43.70
KPSI Cable Hanger
KPSI Cable Hanger

Cable hanger for KPSI level transducers.

In Stock
$36.42
KPSI Anti-Snag Cone Overmold
KPSI Anti-Snag Cone Overmold

Anti-snag cone, one inch bore, overmold.

In Stock
$29.13
FloCat STE-DISP Sensor Termination Enclosure with Display
FloCat STE-DISP Sensor Termination Enclosure with Display

Compatible with any manufacturer's transmitter & moisture protection method, outputs preprogrammed by Instrumart at no cost.

In Stock
$650.00
KPSI 827 Stainless Steel Nose Weight
KPSI 827 Stainless Steel Nose Weight

Provides an additional 16.5oz of weight to transducers.

In Stock
$99.30

This product can be used in the following applications:

Here's how some of our customers use this product...

Drop-in Replacement

The Background: Our customer is an industrial manufacturer that has a number of level transmitters monitoring tank levels throughout the facility. The customer is seeking replacements for the old level transmitters that are starting to fail.

The Problem: The tanks and their contents are critical to the process and production would have to shut down to replace the level transmitters, a costly proposition.

The Solution: We recommended the KPI 750 level transducer, a cross-over drop in replacement which is available in a wide range of configurations including customized level ranges which allowed the customer to replace their obsolete units without reprogramming their control system or experiencing long a shut-down.

Part Number Price Available
750S14D4C005.000000.000C10025A
Show Configuration
$781.18 18 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
