PIE 820 / 820PM Multifunction Process Calibrator

Reads milliamp, voltage, frequency, thermocouples, RTDs & checks continuity, with panel mount option.

PIE 820 / 820PM Multifunction Process Calibrator
PIE 820 Multifunction Process Calibrator
  • PIE 820 Multifunction Process Calibrator
    PIE 820 Multifunction Process Calibrator
  • PIE 820PM Multifunction Process Calibrator
    PIE 820PM Multifunction Process Calibrator
PIE 820 / 820PM Multifunction Process Calibrator
PIE 820 Multifunction Process Calibrator
PIE 820 / 820PM Multifunction Process Calibrator
PIE 820PM Multifunction Process Calibrator
Starting at $2,729.00

View Company Reviewsby Trustpilot
Manufactured
  • By PIE Practical Instrument Electronics
Includes
  • FREE Ground Shipping
  • FREE Lifetime Tech Support
Availability
  • Some models in stock. View available part numbers.
Product Manual Product Specs (2 Files)
Questions?
Call 1-800-884-4967 or Email Us.
Open 8:00 am to 5:30 pm ET.
Trustpilot

Overview

Features

  • 0.03% FS accuracy
  • Source & read 0 to 24mA
  • 1mA rms at 20kHz source current
  • Troubleshoot loop & wiring problems
  • Checkout flow & vibration systems
  • Calibrate directly in °F or °C
  • CE compliant
Instrumart logo

This is the recommended replacement for the Altek TechChek 820 Multifunction Process Calibrator.


Description

The PIE 820 / 820PM multifunction process calibrator combines all milliamp loop functions, sources and reads DC Volts and millivolts, 14 thermocouple types, RTD curves, ohms, and process frequency signals.

The PIE 820 / 820PM multifunction process calibrator sources and reads types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P (Platinel II) thermocouples. It also sources and reads Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850) Copper 10 & 50 Ohm, Nickel 100 and 120 Ohm RTDs.

All ranges have auto storing MIN/MAX readings and three output set points for fast calibration of zero, midpoint, and span. Advanced features include automatic detection of 2, 3, and 4 wire RTDs plus configurable automatic stepping and ramping.

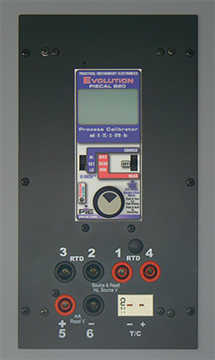

The PIE 820PM is the panel mount version of the PIE 820, and includes 8.75in x 4.75in aluminum mounting plate, screws, and an 110/120V AC adapter.

PIE 820 / 820PM Multifunction Process Calibrator:

  • PIE 820-BP: Includes rubber boot and NIST certificate
  • PIE 820: Includes rubber boot, carrying case, test leads and NIST certificate
  • PIE 820PM: Panel Mount PIE 820 multifunction calibrator

Documents

Spec Sheets

  • PIE 820 Multifunction Process Calibrator Datasheet PDF (360 KB)
  • PIE 820PM Multifunction Process Calibrator Datasheet PDF (476 KB)

Manuals

  • PIE 820 Multifunction Process Calibrator Manual PDF (2.9 MB)

Links

  • All possible part numbers

Accessories

Batteries/Chargers

PIE Ni-MH Batteries and Charger
PIE Ni-MH Batteries and Charger

Ni-MH 1 hour charger with 4 Ni-MH AA batteries.

$126.00

Accessories

Please consider these optional accessories.

PIE RTD Wire Kit
PIE RTD Wire Kit

2 red and 2 black leads with retractable shield banana plugs and spade lugs.

In Stock
$95.00
PIE 020-0236 Magnet and Hanging Strap
PIE 020-0236 Magnet and Hanging Strap

Hang your PIE calibrator from racks, cabinets, and from pipes.

In Stock
$20.00

In Stock

Part Number Price Available
PIE 820
Show Configuration
$2,909.00 2 in stock
Configuration for PIE 820
Base Price:
$0.00
Options
Includes rubber boot, carrying case, test leads and NIST certificate (+$2,909.00)
Reconfigure
