Name: Badger Meter PFT420 Analog Flow Transmitters
Price: 1281.0 USD
Availability: InStock

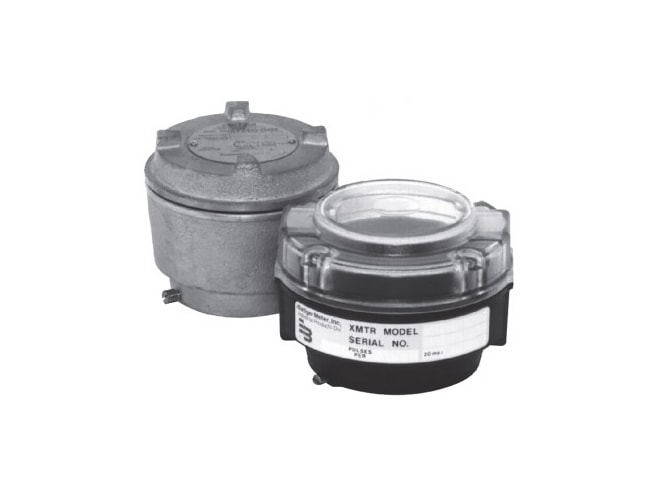

Badger Meter PFT420 Analog Flow Transmitters — Badger Meter PFT420, PFT420/2 and FT420B Analog Flow Transmitters

Starting at $1,281.00

View Company Reviews

Manufactured

By Badger Meter

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Specs

Features

Solid-State Circuitry, Long Life, High Reliability
Opto-isolator: Open collector transistor
Accuracy: Within 0.5% of point
Repeatability: Within 0.2% of point
Plastic (PFT design) or bronze (FT design) housing
NEMA 4X Rating (PFT design)

The FT-420B has been discontinued. The PFT-420 and the Recordall Registration and Endpoint are the suggested replacements.

This product is an accessory for the following products:

Badger Meter Industrial Turbo Head Assembly

Replacement head assemblies for the Industrial Turbo flow meter.

Starting at $781.00

Badger Meter Industrial Turbo Turbine Flow Meter

Flow meter for applications with some high volume and/or high flow rates.

Starting at $1,958.00

Badger Meter RCDL Nutating Disc Flow Meter

±1.5% accuracy and ±0.5% repeatability for metering of industrial fluids.

Starting at $314.00

The Badger Meter PFT420, PFT420/2 and FT420B are versatile analog flow transmitters for use with Badger's complete line of flow meters. These solid state units produce a 4-20 mA DC output signal through a two-wire design. They also provide a digital pulse output. The outputs are isolated from power supply negative. The 4-20 mA output signal is directly proportional to the rate of flow through the meter. The signal has excellent linearity, accuracy and repeatability.

These flow transmitters will precisely condition and transmit flow meter signals for process control in the chemical, food & beverage, water conditioning, pharmaceutical and any other industry where measurement and control of fluid flow is required. The transmitter outputs are compatible with most process controllers, totalizers and flow indication devices such as chart recorders and other data logging devices.

The PFT420 is for use with Badger Meter disc and Recordall turbo flow meters. The FT420B is for use with the Badger Meter disc meter. The PFT420/2 is for use with the Badger Meter industrial turbo flow meter.

Spec Sheets

Badger Meter PFT420 Analog Flow Transmitters Datasheet PDF (266 KB)

Links

All possible part numbers

Part Number	Price	Available
PFT420[D-1-B] Show Configuration	$1,281.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Limited to in-stock inventory". Click here to select options
