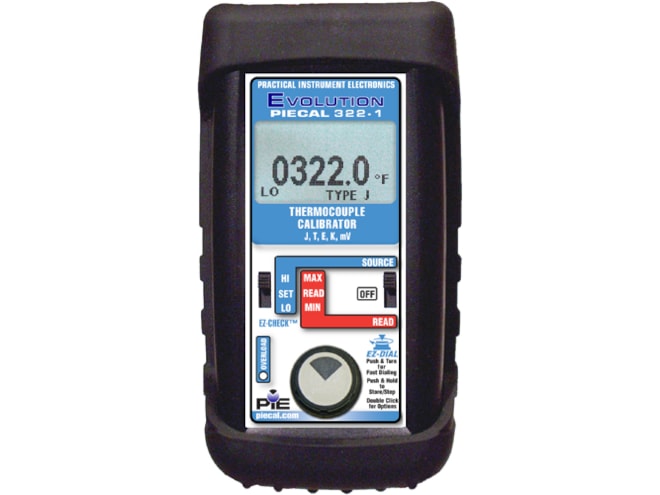

PIE 322 Thermocouple Calibrator
Source and read four thermocouple types J, K, T & E plus 13.000 to 80.000 mV.

-
Some models in stock. View available part numbers.
Overview
Features
- Accuracy: ±0.008% of reading + 0.006 mv
- Cold junction compensation: ±0.16°F (±0.1 °C)
- Millivolt range: -13.000 to 80.000 mV
- Operating temperature range: -25 to 60°C (-10 to 140°F)
- Operating RH range:
- 10% ≤ RH ≤ 90% (0 to 35°C), non-condensing
- 10% ≤ RH ≤ 70% (35 to 60°C), non-condensing
This is the recommended replacement for the following Altek Calibrators:
- Altek 222 Thermocouple Calibrator
- Altek 322-1 Thermocouple Calibrator
Description
The Practical Instruments Electronics (PIE) PIECAL 322 automated thermocouple calibrator is easy to use and very versatile. Just plug in any thermocouple via a miniature thermocouple jack to calibrate and measure all your thermocouple instruments and thermocouple sensors. The PIECAL 322 works with any thermocouple including types J, K, T and E.
PIECAL 322 thermocouple calibrators can easily set any value quickly to within 0.1° with the adjustable digital potentiometer. The EZ-CHECK switch stores any three temperatures for instant recall. The PIECAL 322 is suitable for the shop, plant or field. It comes protected with a rubber boot and rugged low profile switch. The backlit display enable easy operation even in areas of low light.
The PIECAL 322 features fast calibration with automatic output stepping. Choose between 2,3, 5, 11 and 21 steps to automatically increment the output in 100%, 50%, 25%, 10% or 5% of span. The step time can be set to match your system from 5, 6, 7, 8, 10, 15, 20, 25, 30 and 60 seconds.
PIECAL 322 calibrators are compatible with many process instruments. The meter connects directly to the thermocouple inputs of smart transmitters, PLCs, DCS and multichannel recorders to verify their ouputs or displays. The PIECAL 322 also works with older instruments and newer multichannel instruments that switch between input channels.
PIE 322 Thermocouple Calibrator Models:
- PIE 322-BP: Includes rubber boot and NIST certificate
- PIE 322: Includes rubber boot, carrying case, test leads, and NIST certificate
Documents
Accessories
In Stock
Part Number | Price | Available | |
---|---|---|---|
PIE 322 |
$1,500.00 | 1 in stock |
