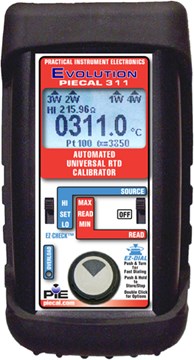

PIE 311 / 311Plus Automated Universal RTD Calibrator
Starting at $1,499.00

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • ±0.015% of reading + 0.05Ω accuracy
  • Relative humidity range:
    • 10% ≤RH ≤90% (0 to 35°C) non-condensing
    • 10% ≤RH ≤70% (35 to 60°C) non-condensing
  • Optional milliamp channel (311Plus)
    • Sources & reads 0 to 24mA
    • Includes current leakage test
  • Calibrates directly in °F & °C
  • Automatically detects 2, 3, or 4 wire RTDs

What's in the Box

  • Rubber boot
  • 4 AA alkaline batteries
  • Certificate of calibration
  • RTD test leads
  • Small carrying case

The PIE 311 / 311Plus automated universal RTD calibrator automatically detects 2, 3, or 4 wire RTDs. It can be used to calibrate and measure all RTD instruments and sensors, automatically indicating connections on the display to simplify hookups.

It is available as a single channel RTD (PIE 311) or double channel milliamp and RTD calibrator (PIE 311Plus). Both models are compatible with any smart transmitter, PLC, DCS, or multichannel recorder.

The PIE 311 / 311Plus features automatic output stepping for fast calibration. Choose between 2, 3, 5, 11 and 21 steps to automatically increment the output in 100, 50, 25, 10 or 5% of span. Then select the step time to match your system from 5, 6, 7, 8, 10, 15, 20, 25, 30 and 60 seconds.

PIE RTD Wire Kit
2 red and 2 black leads with retractable shield banana plugs and spade lugs
$55.00
In Stock
PIE Ni-MH Batteries and Charger
Ni-MH 1 hour charger with 4 Ni-MH AA batteries
$80.00
PIE Certified Test Data for Calibrators and Simulators
$100.00
PIE 020-0236 Magnet and Hanging Strap
Hang your PIE calibrator from racks, cabinets, and from pipes
$19.00
In Stock
Part Number Price Available
PIE 311
Show Configuration
Base Price
$1,499.00
Channels
Single channel RTD
Reconfigure
$1,499.00 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
