Kobold NEK Compact Conductive Level Switch

Ryton or polypropylene bodies and no moving parts.

Starting at $169.56

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Switch: NPN, PNP, or SPDT Relay
  • 3/4" process connection
  • Wetted Materials:
    • Housing: Ryton or polypropylene
    • Electrodes: 316-Ti SS
  • Maximum Pressure:
    • Ryton: 290 PSIG
    • Polypropylene: 85 PSIG
  • Temperature Range:
    • Ryton: -10 to 176°F
    • Polypropylene: -10 to 140°F
  • Minimum Liquid Conductivity: 72μS/cm
  • Switching Delay: 0.5 sec
  • 6ft PVC cable

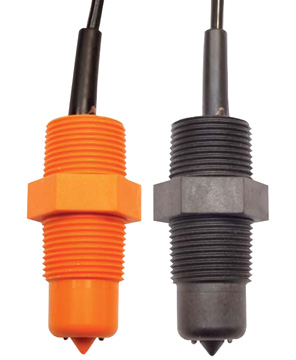

The Kobold NEK compact conductive level switch is an excellent choice for monitoring the level of conductive liquids in tanks. The NEK series conductive level switch senses liquid level by applying a low AC voltage to a set of stainless steel electrodes. When a conductive liquid is present a small current will flow between the electrodes, resulting in switch activation.

The Kobold NEK compact conductive level switch is available with either a Ryton or polypropylene body with 316-Ti stainless steel electrodes standard. This makes the NEK suitable for many chemicals and aggressive media. The solid state design has no moving parts so the NEK is also a sure bet for dirty liquids as well as those with high solids content.

Part Number Price Available
NEK-3173N20C
Show Configuration
$222.48 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks. Call for expedite options". Click here to select options
