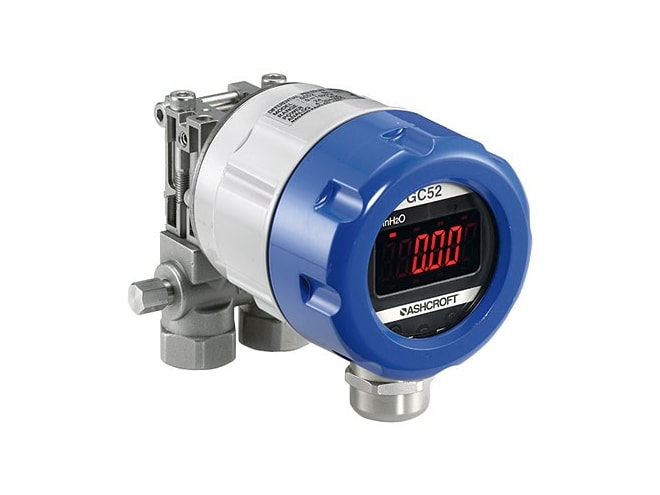

Ashcroft GC52 Differential Pressure Transmitter
Starting at $1,067.97

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Unidirectional & bidirectional ranges
  • Ranges from 0-4 to 0-400 inH2O unidirectional
    • Up to ±200 inH2O bidirectional
  • ±0.5% FS accuracy
  • 8x smaller than conventional transmitters
  • NEMA 4X (IP65) aluminum housing
  • Backlit LCD display
  • Stainless steel wetted parts
  • 2-wire 4-20mA output
  • Internal push-button configuration
    • Scaling, loop check & min/max hold
  • Display easily rotates in 90° increments

The Ashcroft GC52 differential pressure transmitter is a uniquely compact transmitter, ideal for flow and tank level applications where reliable, low DP measurements are required. Equipped with the patented Si-Glas 316 stainless steel isolated sensor, the GC52 can monitor a wide variety of wet or dry media.

The Ashcroft GC52 differential pressure transmitter is available in unidirectional ranges from 0-4 to 0-400 in H2O and bidirectional ranges up to ±200in H2O with line (static) pressures up to 300 psi. A rugged aluminum NEMA 4X IP65 enclosure measures only 2.56 inches in diameter and incorporates a backlit LCD display for local reading. The Ashcroft GC52 differential pressure transmitter has a two-wire configurable 4 to 20mA output signal that can be adjusted to re-range the transmitter or tare unwanted fluid head preloads.

Other features of the Ashcroft GC52 differential pressure transmitter include internal push-button configuration, which allows for quick range changes and a scaling function which allows the display to indicate arbitrary physical units. A loop check function allows the unit to output 4 to 20mA without applying any pressure.
