Overview

Features

  • 3 ranges up to 1V
  • Accuracy: 0.02%
  • 2 uV null meter resolution
  • 20mA output current
  • Short circuit and overload protection
  • Portable with rechargeable batteries and carrying case

What's in the Box

  • Protective cover

Description

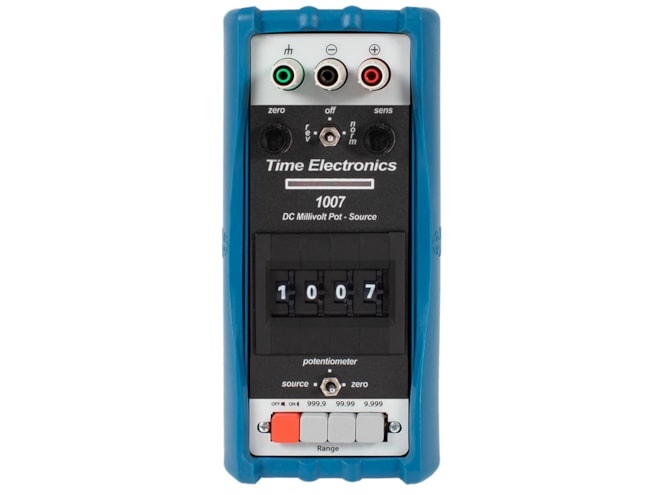

The Time Electronics 1007 DC millivolt potentiometer and source offers testing versatility and can be used for potentiometric voltage measurement in addition to its operation as a millivolt source. The null zero and sensitivity are adjustable via front panel controls - maximum sensitivity enables null balance to resolve 3 microvolt.

The Time Electronics 1007 DC millivolt potentiometer and source has an accuracy of 0.02% over three ranges up to 1V. Other features include 2 uV null meter resolution, 20mA output current, and short circuit and overload protection.
