Watlow AT Style Mineral Insulated Thermocouple For Use with Thermowells

Fast-responding, durable, capable, and ideal for handling higher temperatures.

Watlow AT Style Mineral Insulated Thermocouple For Use with Thermowells

Watlow AT Style Mineral Insulated Thermocouple For Use with Thermowells
Watlow AT Style Mineral Insulated Thermocouple

Starting at $102.45

View Company Reviews

Manufactured

By Watlow
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Features

Designed for use with thermowells
0.250 inch sheath outside diameter
Style AT is ideal for process industry applications
Compliance with ASTM specifications

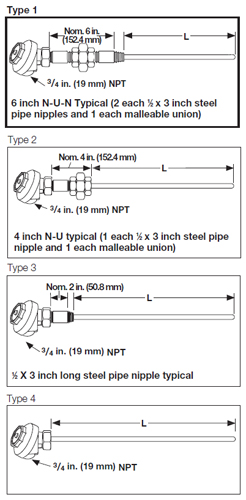

Connection heads come in four different styles
Spring-loading allows thermocouple to maintain contact against bottom of thermowell

The Watlow AT style mineral insulated thermocouple for use with thermowells is an energy and process temperature sensor that features XACTPAK metal-sheathed mineral insulation, enhancing the sensor's ability to "read" temperature by transferring heat quickly to the measuring junction.

The Watlow AT style mineral insulated thermocouple is ideal for process petrochemical and power applications where a sensor-thermowell assembly is typically used. Thermowells protect the thermocouple and allow replacement of the sensor without shutting down the process, saving valuable downtime.

Watlow Mineral Insulated Thermocouples

Watlow mineral insulated thermocouples are fast-responding, durable and capable of handling higher temperatures.

Watlow mineral insulated thermocouples are manufactured with XACTPAK®, Watlow's trademark for metal -sheathed, mineral insulated (MI) thermocouple material. XACTPAK responds fast because the protective metal outer sheath allows the use of smaller diameter thermocouple conductors. The rock hard compacted MgO insulation further enhances the sensor's ability to "read" temperature by transferring heat quickly to the measuring junction.

Watlow mineral insulated thermocouples' XACTPAK protecting sheath and compacted insulation outperforms bare wire thermocouples in most applications.

Applications for Watlow AT Style Mineral Insulated Thermocouple for Use with Thermowells

Heat treating
Furnaces/kilns
Turbines
Bearing temperature
Power stations
Steam generators
Diesel engines
Nuclear reactors

Atomic research
Jet engines and test cells
Rocket engines
Semiconductor manufacturing
Refineries/oil processing
Catalytic reformers
Food Processing
