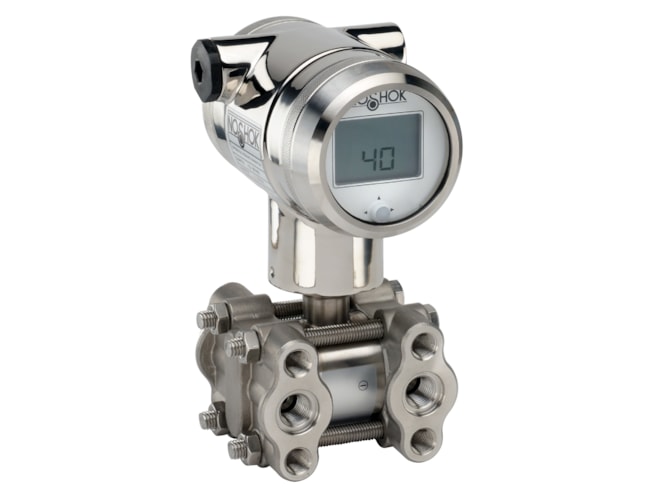

NOSHOK PTI40 Premier Accuracy Intelligent Pressure Transmitter

Premier accuracy differential pressure transmitter with adjustable ranges from vacuum to full scale.

Starting at $1,383.27

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Pressure ranges: 1 to 300psig (adjustable from vacuum to full scale)
  • Stability: <0.1% per year
  • Accuracy: ±0.075% of adjusted span (100:1 turn down)
  • Response time: <200ms
  • Service life: 10+ years
  • Temperature ranges:
    • media -4 to 176°F (-20 to 80°C)
    • ambient -4 to 158°F (-20 to 70°C)
  • Output: 4 to 20 mA 2-wire and HART
  • Power requirement: 12 to 36VDC
  • Two 1/4in NPT female process connections
  • IEC 61518 flange with bleed valves
  • Active temperature compensation
  • Housing/Connection/Measuring Element Material: Stainless Steel
  • Environmental rating: IP66
  • RFI, EMI and ESD protections
  • CE compliant
  • 3-year Warranty

The NOSHOK PTI40 Series Intelligent Pressure Transmitter is specifically designed with differential pressure readings in mind. The PTI40 utilizes a piezoresistive silicon sensor for use in general industrial applications where improved accuracy and temperature compensation is required. When the PTI40's sensor element is put under pressure, it creates a deflection in the silicon substrate and bridge network. This generates a value that is converted into a pressure measurement within 0.075% accuracy, providing consistent, exact readings in less than 200ms of change occurring.

The PTI40 features a compact but durable design, with a stainless steel flush diaphragm that reduces the fill fluid required, as well as the potential for damage when utilized in harsh environmental conditions. The design features easy-to-implement adjustments to all available ranges via a streamlined 1 button joystick on the PTI40's display, or through the HART output.

All NOSHOK PTI Series Transmitters come with a three year warranty.

Applications

  • General industrial
  • Pulp & paper
  • Water & wastewater
  • Power generation
  • Food & beverage
