Rosemount 9000X Synchros WirelessHART Repeater

WirelessHART repeater for extending network coverage and improving communication reliability in industrial environments.

Starting at $825.55
Effective April 15th, 2025 Rosemount has added a 6.7% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Specs (2 Files)

Features

  • Wireless output: IEC 62591 (WirelessHART), 2.4 GHz
  • Network: self organizing, self healing mesh routing
  • Device output: electronics temperature and Power Module voltage
  • Update rate: 1 to 60 minutes, user-selectable
  • Transmit power: 10 mW (10 dBm) EIRP maximum
  • Power supply: replaceable intrinsically safe Synchros Power Module
  • Power life: up to 10 years at 1 minute update rate
  • Temperature range: -40 to 185°F
  • Enclosure: Type 4X, IP66/67
  • Mounting: direct pipe or remote mounting options
  • Approvals: USA, Canada, IECEx, and ATEX available

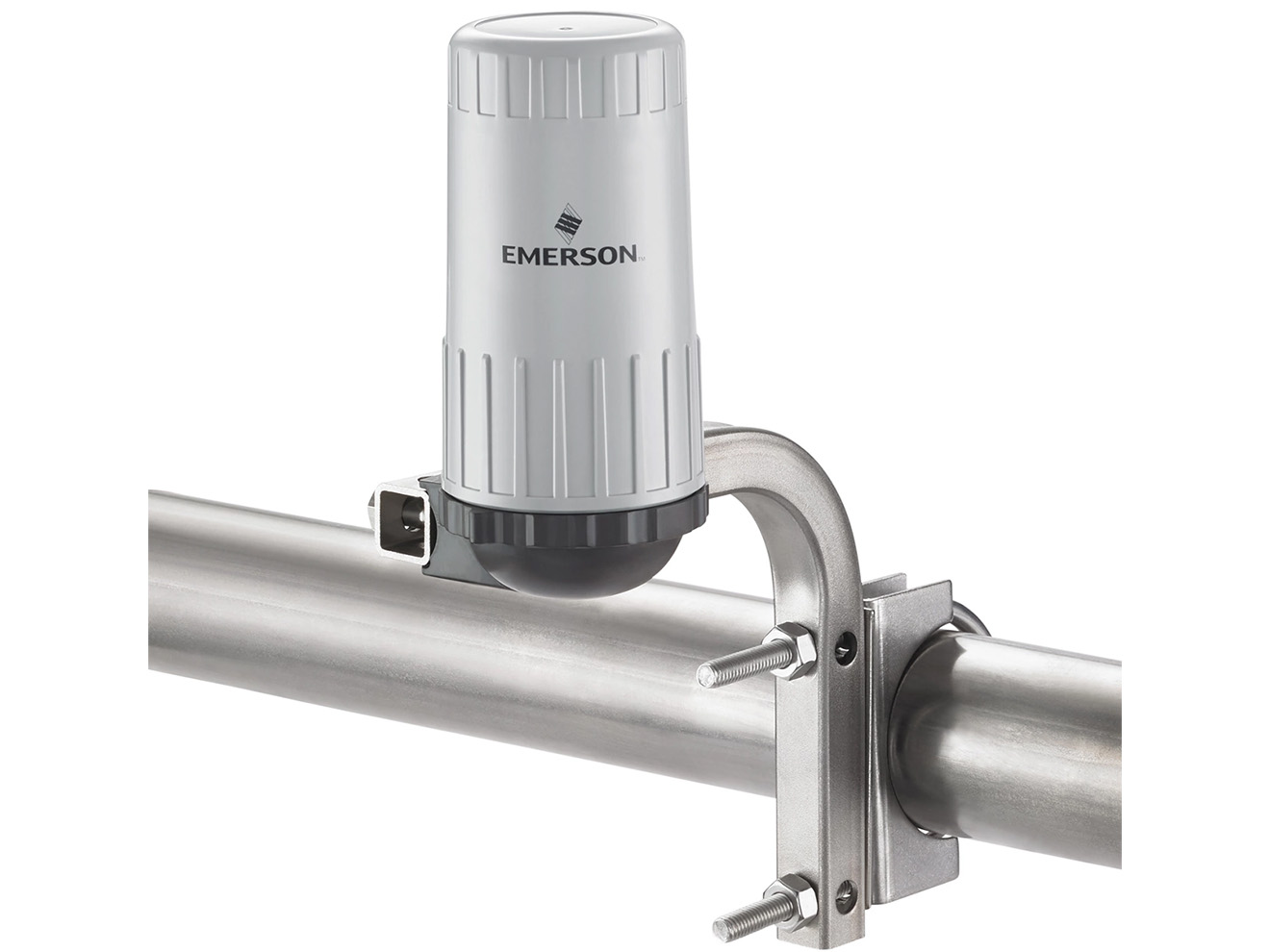

The Rosemount 9000X Synchros wirelessHART repeater is a wireless communication device designed to extend WirelessHART network coverage and improve communication reliability in industrial environments. Operating on IEC 62591 (WirelessHART) technology at 2.4 GHz, the repeater uses self organizing, self healing mesh routing to maintain multiple communication paths throughout the network.

The Rosemount 9000X Synchros WirelessHART Repeater provides device output data including electronics board temperature and Power Module voltage. It is powered by a field replaceable, intrinsically safe Emerson Synchros Power Module with a rated life of up to 10 years at a 1-minute update rate under reference conditions. The device supports user-selectable update rates from 1 to 60 minutes and operates in temperatures from -40 to 185°F. Available with direct pipe or remote mounting options, the repeater features a Type 4X and IP66/67 rated enclosure. Hazardous location approvals are available for USA, Canada, IECEx, and ATEX applications.
