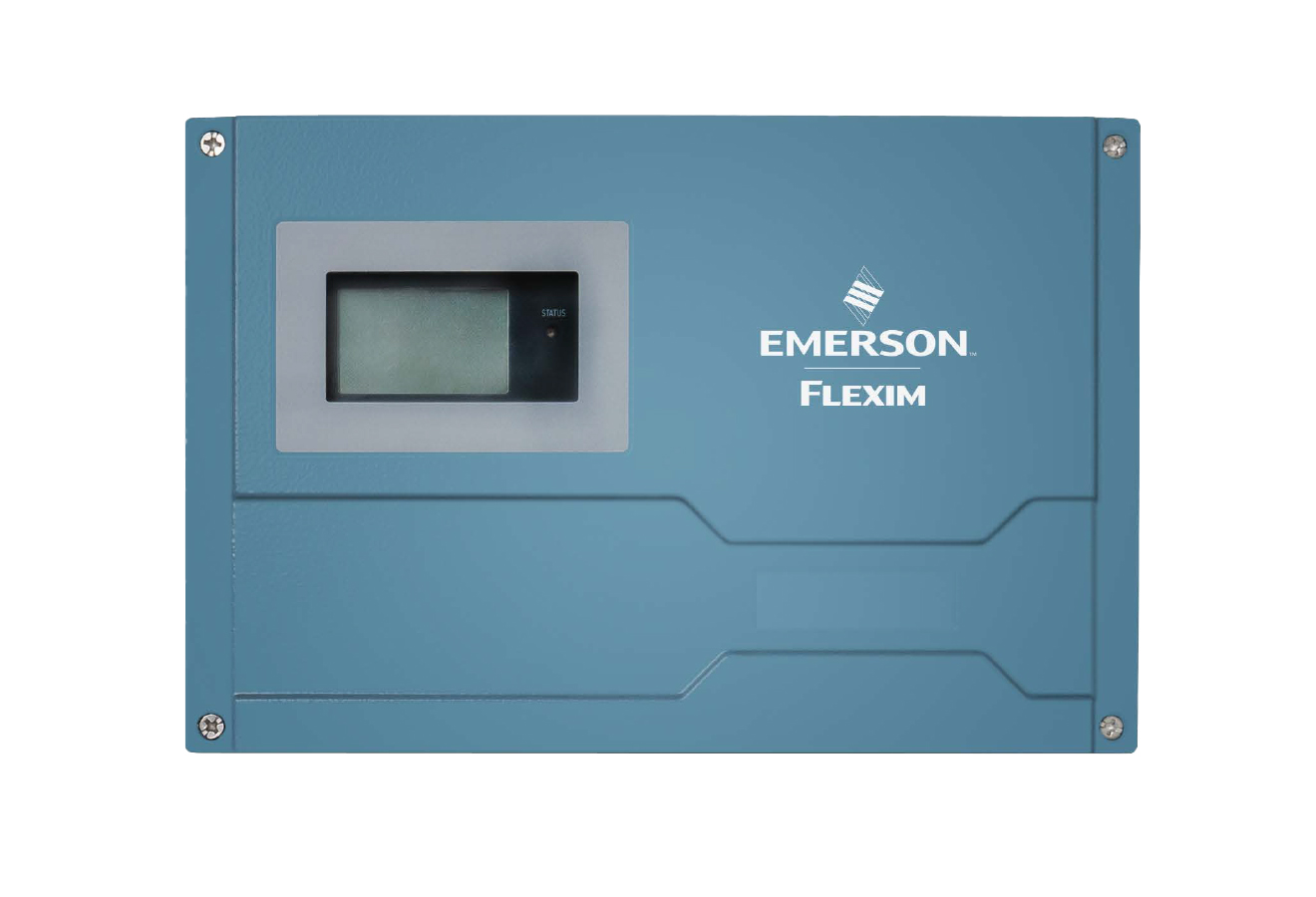

Flexim FLUXUS F532WD Ultrasonic Flow Meter

Stationary clamp-on flow meter with stainless steel housing for existing water and waste water networks, 0.03 to 82ft/s flow rating.

Starting at $5,253.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4 weeks
Product Manual Product Specs (3 Files)

Features

  • Shear wave measurement of water
  • Pipe size(s): 0.98 to 78.7in (recommended sizes)
  • Flow rate: 0.03 to 82ft/s (0.01 to 25m/s)
  • Media temperature range: -40 to 266°F (-40 to 130°C)
  • Output: 4 to 20mA
  • HART protocol available
  • Variofix L fixture materials:
    • Stainless steel 316Ti (1.4571), 316L (1.4404), 17-7PH (1.4568)
  • Compatible with PCCP and cement pipe materials
  • Drift-free design
  • IP68 rated transducers available
  • Power supply: 11 to 32VDC or 90 to 250VAC / 50 to 60Hz
  • Stripped cable ends
A completed Flexim Application Support Form is required to purchase this meter. We will contact you about your order.

The Flexim FLUXUS F532WD Ultrasonic Flow Meter is a non-intrusive solution for flow monitoring and leak detection in drinking water and wastewater networks. The F532WD Series features streamlined installation through the permanent clamp-on design. Reliable and accurate flow measurement is possible at rates as low as 0.03 ft/s, up to 82ft/s. The transducers are fixed to the outside of the pipe for a drift-free design. The transducer is secured with broad stainless-steel straps and the robust Variofix L fixture. The available IP68 protection rating and permanent coupling to existing piping ensures reliable measurements in the long term. Units are available with DC or AC input power, 4 to 20mA output, with compatible pipe sizes from .98 to 78.7in. Refer to the Flexim Clamp-On Ultrasonic Transducer Pipe Size Selection Guide in the Documents tab for specifications on extended pipe sizes possible.
