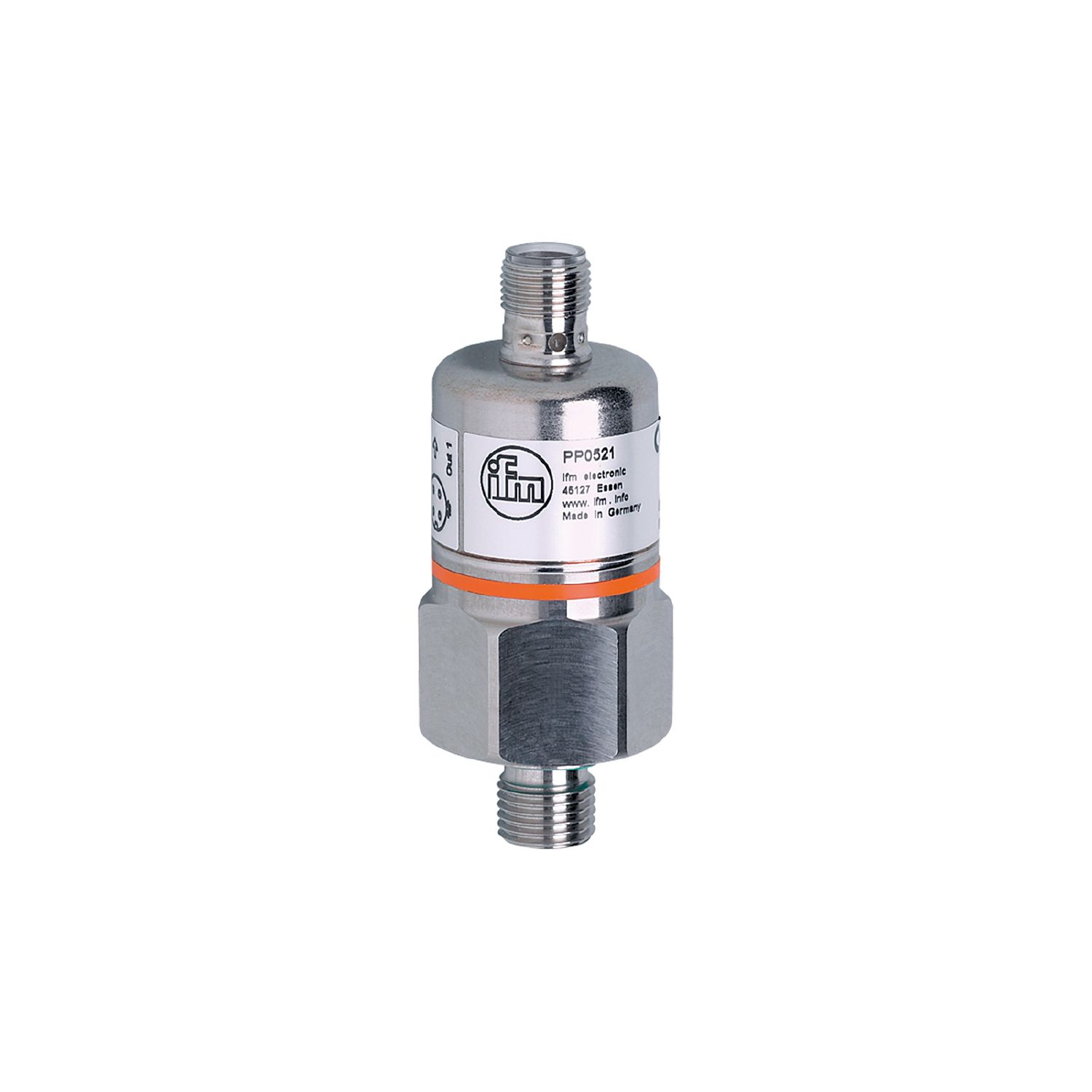

ifm efector PP Series Pressure Switch
Two switching outputs, one of which can be configured as diagnostic output.
Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By ifm efector
Overview
Features
- -13 to 194°F medium temperature
- Integrated diagnostic function
- Multiple measuring ranges
- Switching signal with IO-Link available
- Suited for use in mobile machines
- Lifespan of more than 100 million pressure cycles
- High shock and vibration resistance
Description
The ifm efector PP Series Pressure Switch reliably detecta the system pressure in machines, plants and hydraulic power units of industrial and mobile applications.
The compact housing ensures flexible integration even where space is limited. The robust units offer high shock and vibration resistance and ensure wear-free operation over millions of pressure cycles. The high repeatability and minimal conformity errors of the switch points ensure good long-term stability.
The sensors have a high protection rating and a wide operating temperature range.
Application parameters are established using an external programming device. Some versions can be configured via IO-Link, e.g. using a USB interface. In this case, the LINERECORDER SENSOR software ensures visualization, transferability of configurations and archiving of parameter sets.
