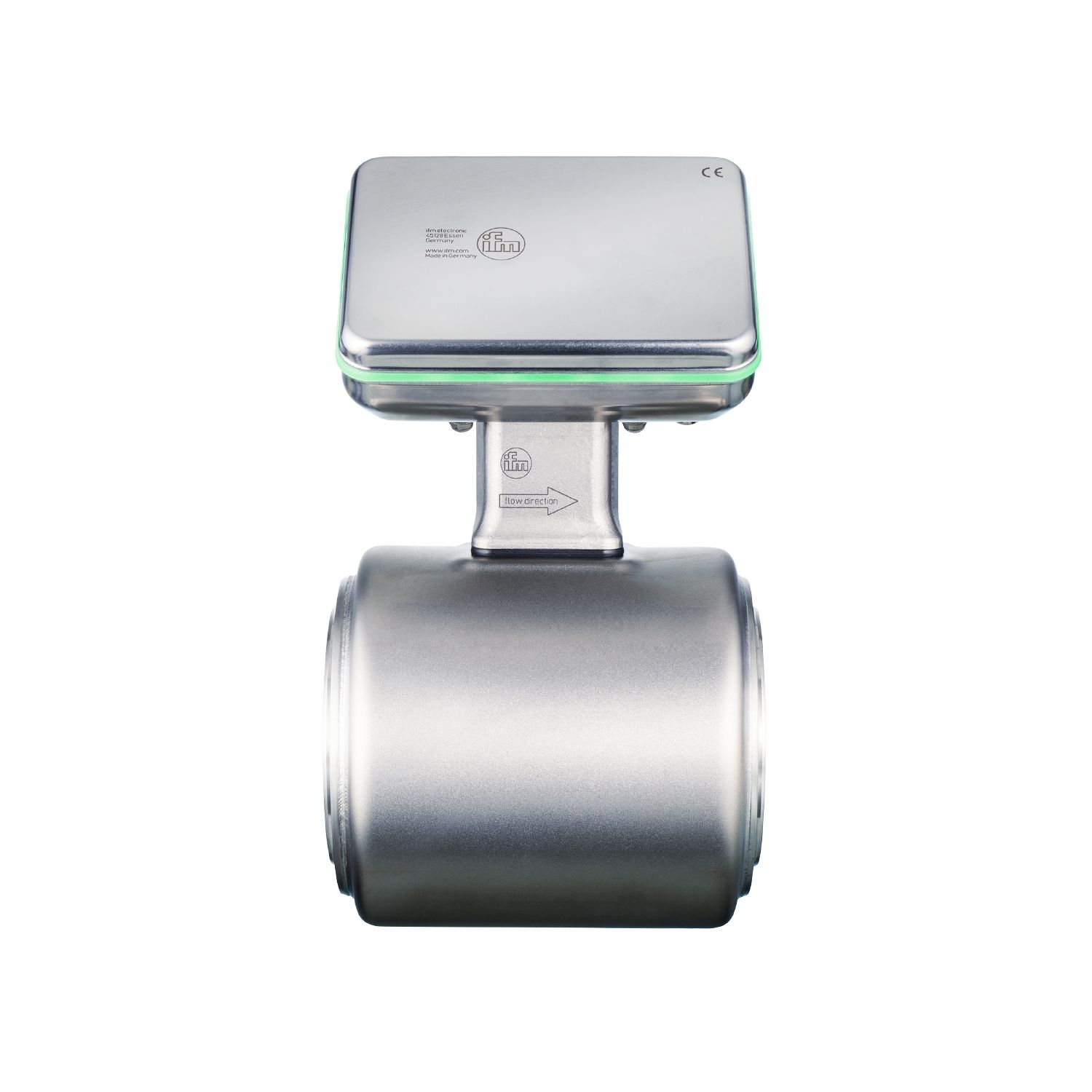

ifm efector SMF Series Magnetic-Inductive Flow Meter
Measured variables: flow rate, total volume, temperature, conductivity and fluid detection.
Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By ifm efector
Overview
Features
- 1.5 to 6in line sizes
- 232 to 580.1 psi ranges
- 1.32 to 2642 gpm measuring ranges
- 250 mA (24V) current consumption
- 1 analog output
- For food and beverage industry
- App-based menu, guided installation and hygienic pushbuttons
- Housing design increases shock and vibration resistance
- Supply voltage and output signals via an M12 connection
Description
The ifm efector Magnetic-Inductive Flow Meter withstands frequent cleaning cycles, high temperatures, and corrosive media, ensuring uninterrupted operation and compliance with industry regulations. It is designed for the food and beverage industry, with strict hygienic standards and harsh operating conditions in mind.
Industry standard M12, with singular connection for power and outputs reducing the risk of moisture ingress into the electronics housing. The compact housing design allows for flexible installation locations and includes sufficient thermal decoupling to withstand media temperatures up to 302°F.
Display option features a 3.5in display for monitoring up to 4 current measurement values. Programmable 360° LED ring that indicates the operating status of the sensor. Included IO-Link digital communication provides detailed process insight over one wire. Up to 8 IO-Link devices on 1 IO-Link master saves on IP addresses.
Applications
- Dairy
- Brewing
- Wine
- Clean-in-Place
