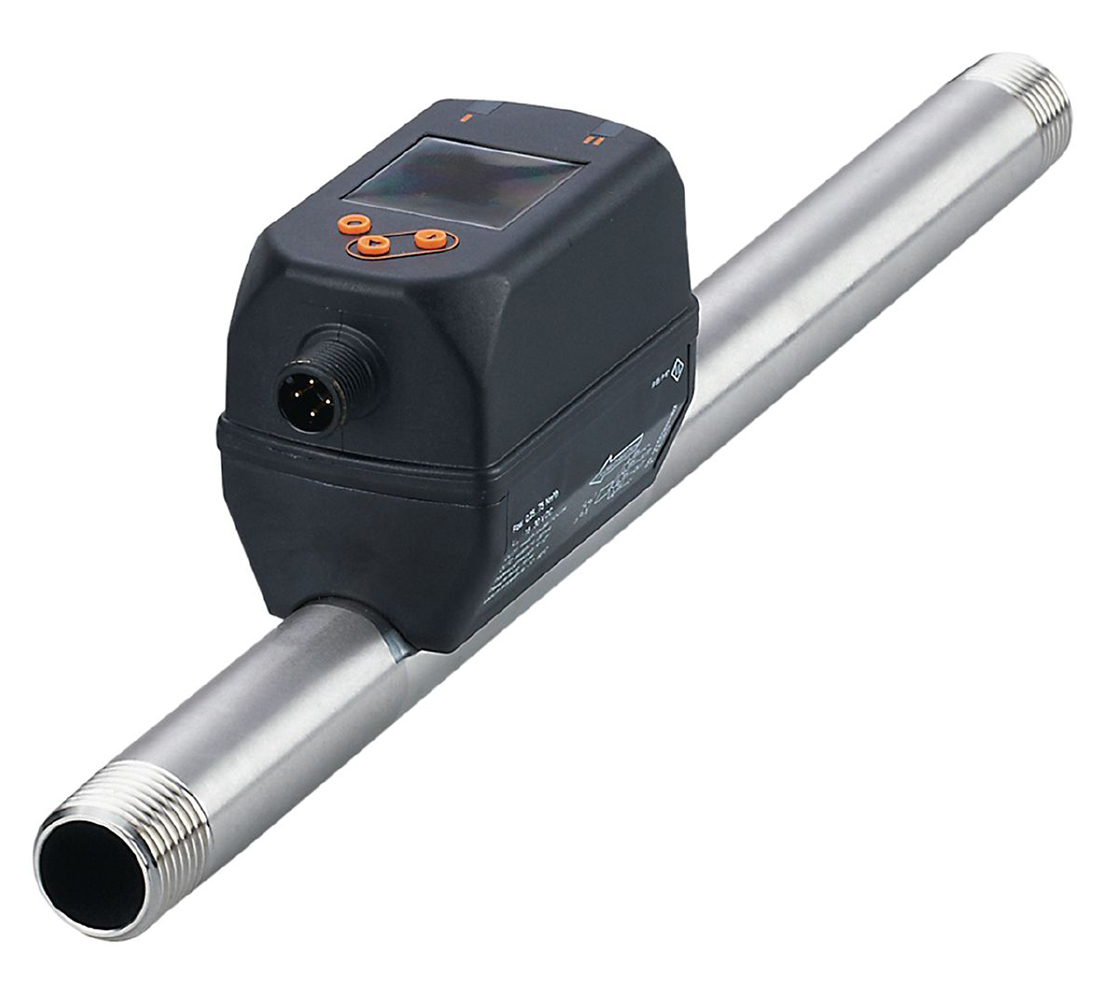

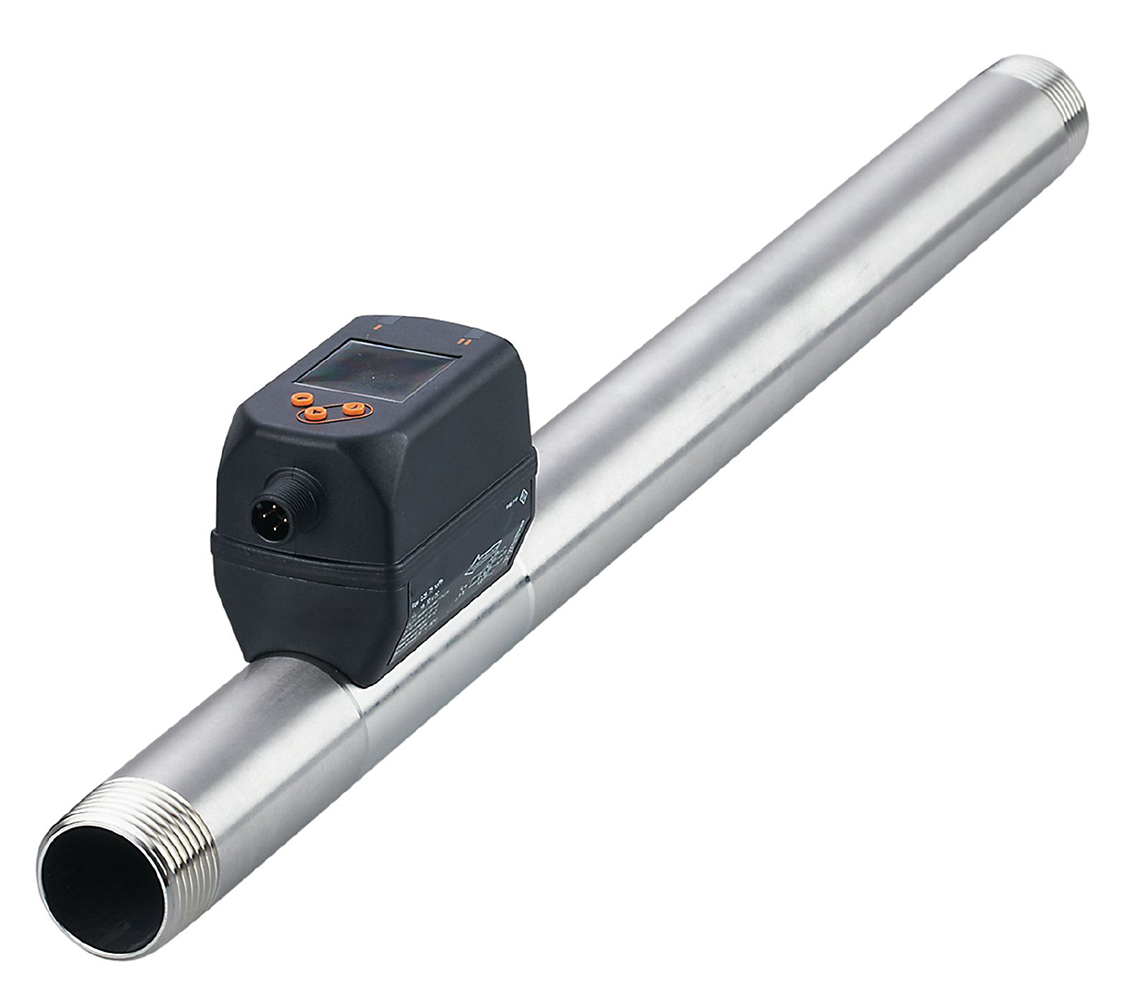

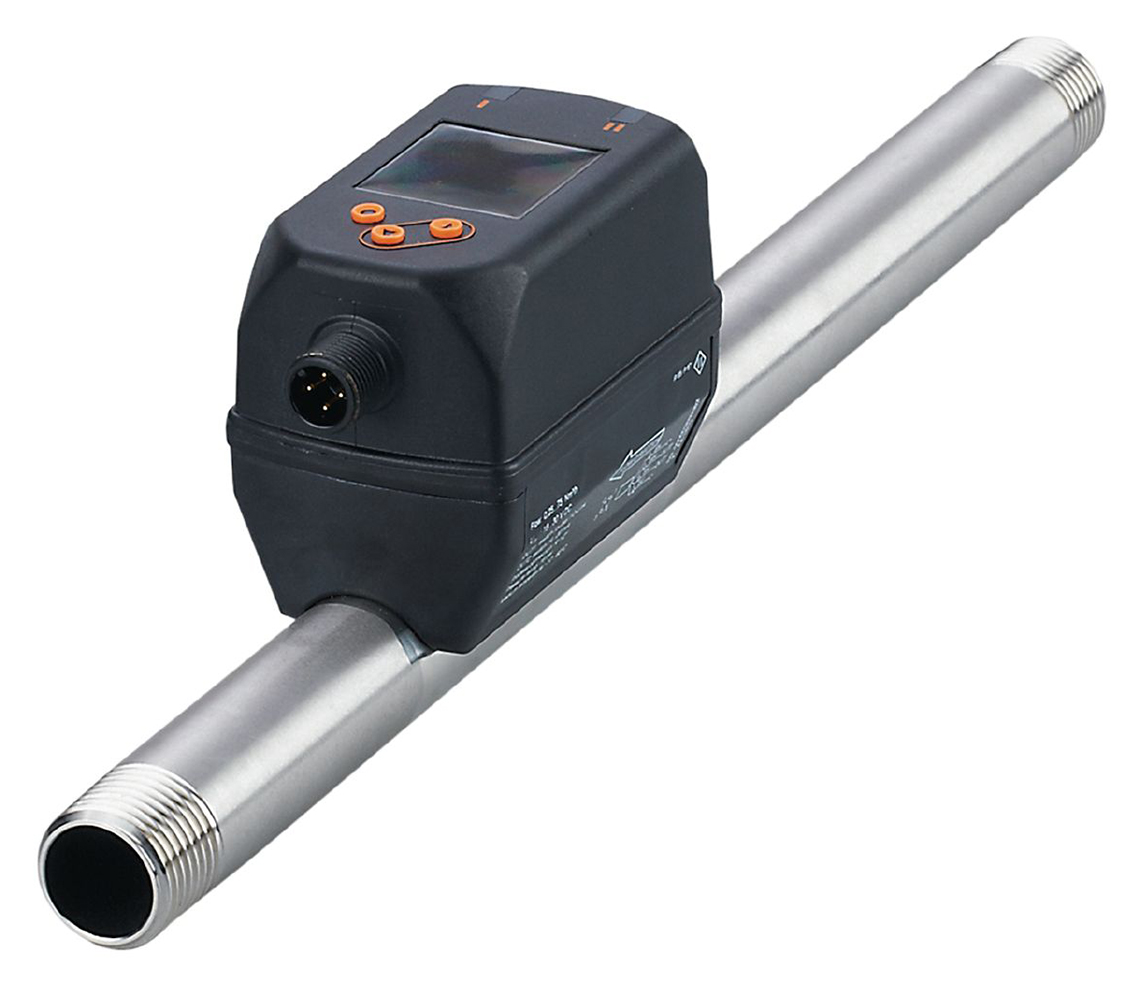

ifm efector SD Series Flow Meter
3-in-1 flow, pressure and temperature sensor for monitoring piping system leaks and optimizing gas volumes used in welding processes. Color display with IO-Link interface.
Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By ifm efector
Overview
Features
- Media: compressed air
- Nitrogen, argon carbon dioxide, helium with certain variants
- Flow measuring range: up to 412scfm
- Temperature measuring range: 14 to 140°F
- Pressure measuring range: -15 to 232psi
- Color display:
- 1.44in, 128px x 128px
- 2 x LED, yellow
- Can be rotated and switched off
- Communication interfaces: switching, analog, pulse signals, IO-Link
- Analog outputs: 1
- Digital outputs: 2
- NPT process connection
- Standard M12 connector
- Materials (wetted):
- Stainless steel / FKM / ceramics glass passivated / PPS GF40 / Al2O3 / acrylate
- UL approval
Description
The ifm efector SD Series Flow Meter is a 3-in-1 sensor that monitors the flow rate, volume, pressure and temperature of compressed air and specialty gases including nitrogen, argon and carbon dioxide. This meter can be mounted at zone, production line, or machine drops to quickly identify leakage and consumption values. Integrated NPT process connections are available in 1/2in, 1in, and 2in sizes. The sturdy stainless steel construction of the meter's wetted parts ensures corrosion resistance, making this product family a versatile choice across various industries.
The integrated pressure measurement of the SD Series assures actuators are operating at maximum efficiency and eliminates the need for a separate instrument. The straightforward 3-pushbutton programming allows the user to configure output settings, units of measurement, and display orientation. The multicolor TFT display simultaneously shows flow rate, total flow volume, temperature, and pressure. LED indicators show switching output status at-a-glance. The IO-Link communication interface transmits process values for visualization via M12 connector for trending, analysis, and work order integration.
