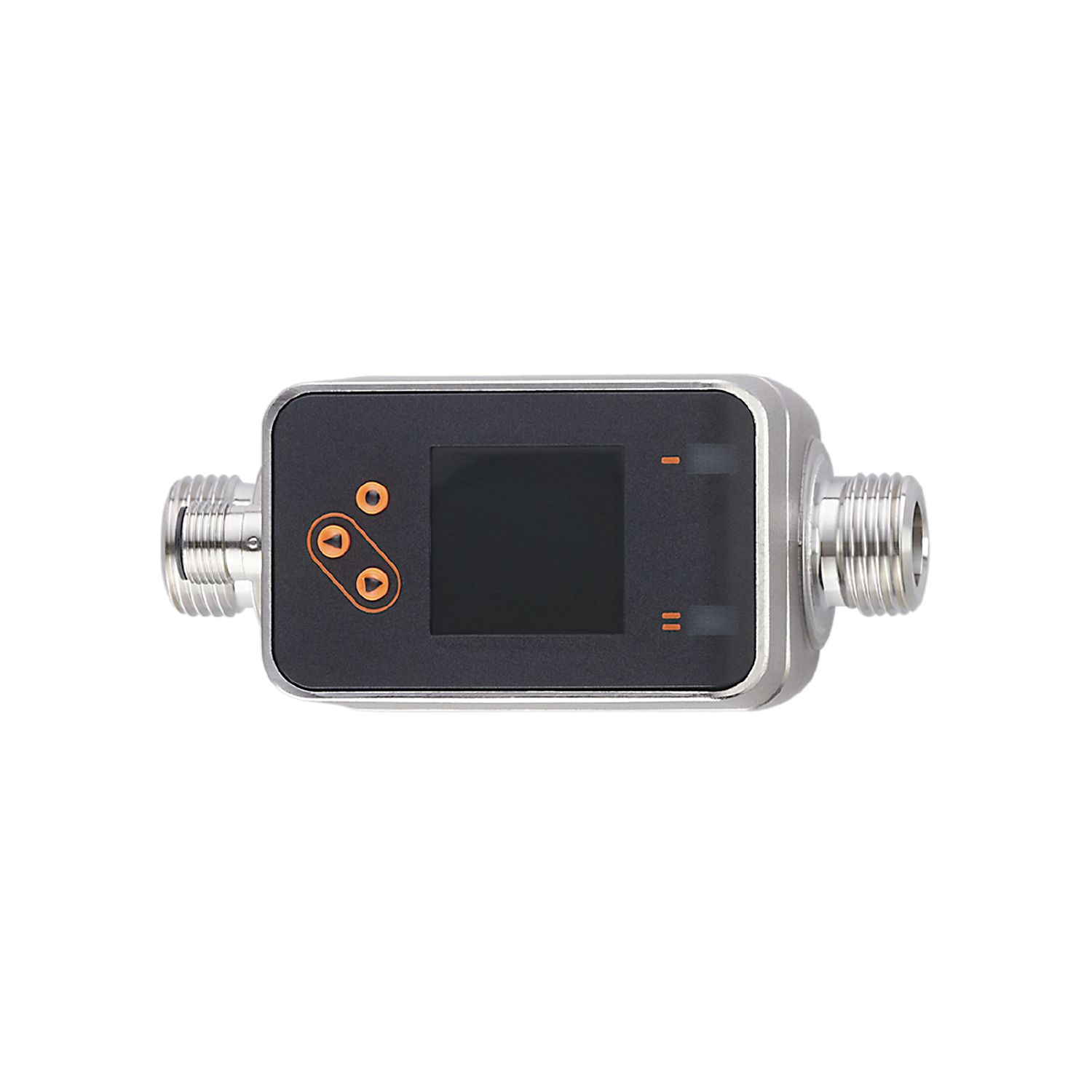

ifm efector SM Series Magnetic-Inductive Flow Meter

Precise measurement of flow, consumption and medium temperature.

Starting at $681.00

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-3 business days
Product Specs

Features

  • 16 bar pressure rating
  • 1 or 2 analog outputs
  • Clearly visible numerical display
  • Various measuring ranges
  • Tubular or rectangular housing

The ifm efector SM Series Magnetic-Inductive Flow Meter is designed to accurately detect the flow rate of conductive media up to 160 gpm for industrial applications and 2,642 gpm for sanitary applications. The mechanically-robust stainless steel design mounts directly in-line for a compact, low-profile installation for process control applications.

Via IO-Link, the SM magmeter and flow meters for water transmits flow rate, flow volume (totalizer function), and medium temperature. Additional features include plug-and-play replacement, real-time recipe changes, and diagnostic feedback.

The magmeter reliably measures liquids with conductivity values > 20 µS / cm such as industrial water, drinking water, water-based coolants, and water/glycol mixtures.

Typical applications include:

  • protecting welding equipment from loss of cooling water
  • batching applications
  • flow and temperature monitoring through heat exchangers
  • totalizing flow of process water
  • pump run-dry prevention
