Gizmo Engineering pH Controller with Alarm

Name: Gizmo Engineering pH Controller with Alarm
Price: 991.0 USD
Availability: BackOrder

Waterproof with included alarm for monitoring pH and producing an alarm when pH is out of range.

$991.00

View Company Reviews

Part Number

pH-1

Manufactured

By Gizmo Engineering

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 5-7 business days

Product Manual Product Specs

Features

9x6x4in ABS enclosure
103dB at 2ft buzzer volume
10A load for connected pumps
120VAC voltage
IP65 ingress rating
RS485 and 4-20mA outputs
Optional BNC connection for pH probe
Probe sold separately

What's in the Box

pH Controller Alarm
10ft SJOOW electrical cord
6in pigtail cord for pump connections

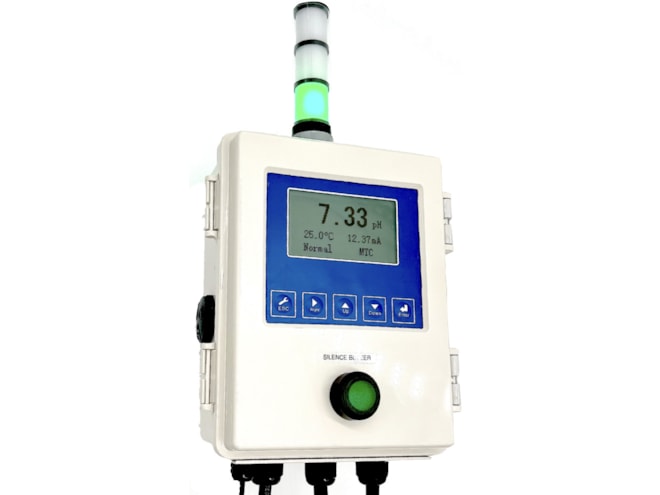

The Gizmo Engineering pH controller with alarm is a rugged, waterproof device designed to monitor pH in wastewater treatment applications and produce an alarm when the pH level leaves a set range. The pH controller with alarm features separate control points for the high pH control pump, the low pH control pump, high alarm, and low alarm. The pH controller's alarm function consists of an LED stack light with three colors to show pH and pump status, and a 103dB buzzer to alert the user when the pH is out of range.

Buttons on the outside of the enclosure allow for easy setup, calibration, general operation, and the ability to activate pumps manually. Two buttons on the side of the controller allow the user to activate connected pumps manually for the purpose of pump calibration, priming, and drum emptying.

The Gizmo Engineering pH controller is also available with a BNC connection for systems that may require it. The BNC connection is not recommended for corrosive environments as it may cause corrosion that can interfere with measurement accuracy.

Other

Gizmo Engineering pH Controller with Alarm Brochure (649 KB)

Manuals

Spec Sheets

Gizmo Engineering Standard pH Sensor Datasheet (791 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
