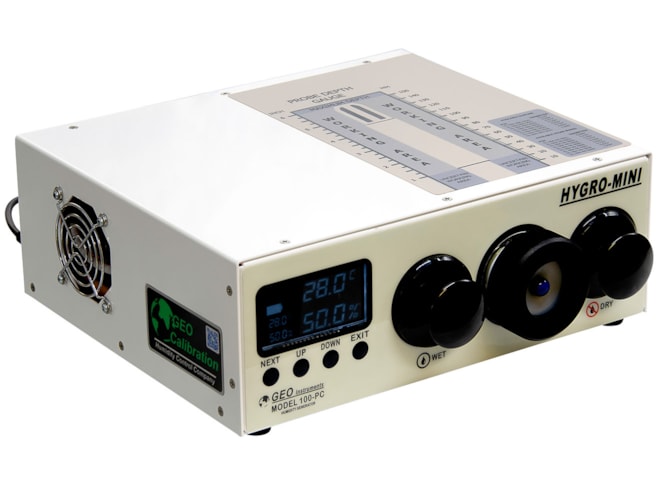

GEO Calibration Hygro-Mini Portable Humidity Generator and Calibrator

Humidity generator and calibrator with temperature range of 65 to 95°F (18 to 35°C) and RH range of 5 to 85% at 74°F (23°C).

$11,700.00

View Company Reviews
Part Number
  • 01-020-00-0000
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Manual Product Specs

Features

  • 18 to 35°C temperature range at 23°C
  • 5 to 85% RH humidity range at 23°C
  • ±0.4°C temperature accuracy
  • ±1.0% relative humidity accuracy
  • PID controller
  • 0.20°C temperature uniformity
  • 0.40% RH uniformity
  • 0.10°C temperature stability
  • 0.15% RH stability
  • Ramp/soak rate of change:
    • Temperature high to low, 1.00°C per minute
    • Temperature low to high, 1.00°C per minute
    • Humidity high to low, 3.00% RH per minute
    • Humidity low to high, 3.00% RH per minute
  • Two hours battery life

The GEO Calibration Hygro-Mini portable humidity generator and calibrator is the smallest unit available with variable control for both humidity and temperature. The Hygro-Mini is battery powered and designed for field calibration. Any programmed set-point can be reached within three minutes, and the orientation does not affect accuracy.

The Hygro-Mini is space efficient, lightweight, and can be used in hard-to-reach spots or for low volume probe facilities. It is ideal for mobile applications.
